map
Class Grid

java.lang.Object
  map.Grid

public class Grid
extends java.lang.Object

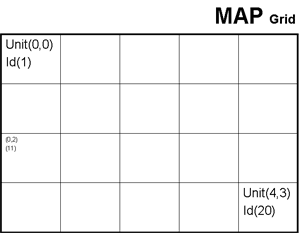

A Grid is divided into a set of Units. The first Unit is in the upper left corner with the values (0,0). Every Unit in the grid is assigned to a Unit Id that is put together by multipling the row of the Unit with the total number of Units per row and adding the column of the Unit + 1.
e.g.: Id(20) = (row_index * #units_per_row) + column_index + 1 = (3 * 5) + 4 + 1 = 20.



A Unit may contains one or more MapItems.



Map Items are loaded from ".list" files which contain a collection of Map Items. In such a file following syntax is used:

1: 5 // Number of Columns in the Grid
2: 4 // Number of Rows in the Grid
3: -
4: 0 0 Hoobastank - The Reason.mp3
5: 0 0 Lenny Kravitz - Fly away.mp3
. . ...
17: 0 2 Kylie Minogue - Slow.mp3
. . ...

The first three lines specify the layout of the Grid, where as the rest of the file contains the Map Items (one per line). The first two values assign the Map Item to a Unit followed by the name of the item

Author:

Hlavac Peter

See Also:

MapItem, Unit

Constructor Summary

Grid(java.lang.String resource)
Inits the Grid in building the Unit HashTable that holds UnitIds (Integer Objects) as a key with the corresponding Unit as value

Method Summary

MapItem	getMapItem(java.lang.Integer unitId, boolean bRotate) Gets a Map Item of a given Unit.
java.util.Vector	getMapItems(java.lang.Integer unitId) Returns all Map Items of a given Unit.
java.lang.Integer	getUnitId(int unitX, int unitY) Returns the UnitId of a given row and column
int	getUNITS_X() Gets the number of columns of the Grid
int	getUNITS_Y() Gets the number of rows of the Grid

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

Grid

public Grid(java.lang.String resource)

Inits the Grid in building the Unit HashTable that holds UnitIds (Integer Objects) as a key with the corresponding Unit as value

Parameters:

resource - The resource where to get the items from

Method Detail

getMapItem

public MapItem getMapItem(java.lang.Integer unitId,
                          boolean bRotate)

Gets a Map Item of a given Unit. Every time the method is called with the same UnitId and the parameter bRotate is set to true, the next Map Item of the Unit will be returned.

Parameters:

unit - the Unit where to get a Map Item from

bRotate -

• if set to true return the next item of the given unit
• if set to false return the first item of the unit

Returns:

the a Map Item of a given Unit

getMapItems

public java.util.Vector getMapItems(java.lang.Integer unitId)

Returns all Map Items of a given Unit.

Parameters:

unitId - the unitId to get Map Items from

Returns:

a vector of Map Items for the given Unit

getUnitId

public java.lang.Integer getUnitId(int unitX,
                                   int unitY)

Returns the UnitId of a given row and column

Parameters:

unitX - the column

unitY - the row

Returns:

the UnitId of a given row and column

getUNITS_X

public int getUNITS_X()

Gets the number of columns of the Grid

Returns:

the number of columns of the Grid

getUNITS_Y

public int getUNITS_Y()

Gets the number of rows of the Grid

Returns:

the number of rows of the Grid
