Schema Asbru_7.3.xsd

Elements

abort-if-group

abort-if-item

abort-if-not

administrative-data

always

any

argument

argument-ref

argument-value

array-def

array-ref

ask

average-def

bibref

boolean-def

bound

calculation-def

center-def

change-def

comment

comparison

constant-def

constant-operation

constant-ref

constraint-combination

constraint-not

context

context-combination

context-not

context-ref

count-constraint

cyclical-plan

cyclical-time-annotation

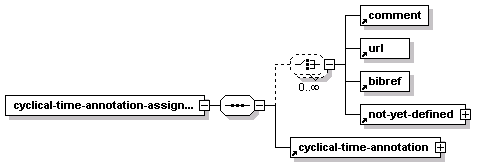

cyclical-time-annotation-assignment

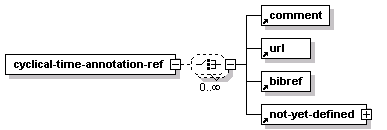

cyclical-time-annotation-ref

cyclical-time-point-assignment

do-after

do-before

duration

earliest

element

end-point-def

explanation

field-ref

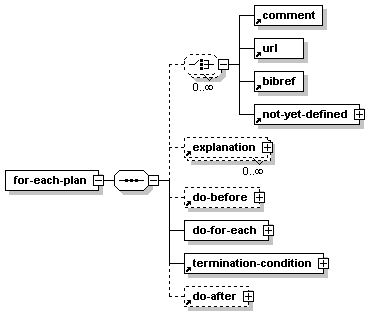

for-each-plan

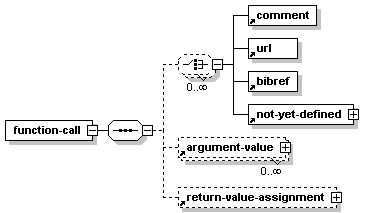

function-call

function-def

get-position

go-to-next

go-to-previous

has-occurred

hash-def

hash-ref

if-then-else

insert-after-iterator

insert-after-position

insert-before-iterator

insert-before-position

interval

invoking-plan

is-at-end

is-at-start

is-automatic

is-known-variable

is-manual

is-member-of

is-unknown-variable

is-within-range

iterative-plan

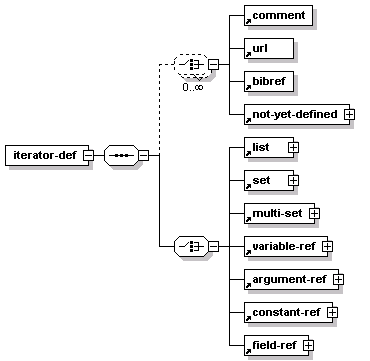

iterator-def

latest

list

list-def

list-ref

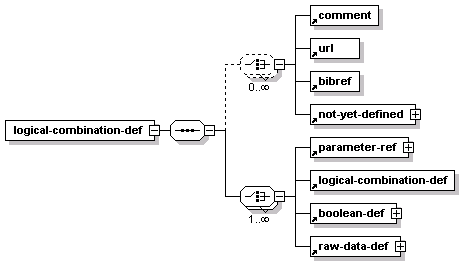

logical-combination-def

logical-dependency-def

lower-bound

maximum

minimum

multi-set

multi-set-def

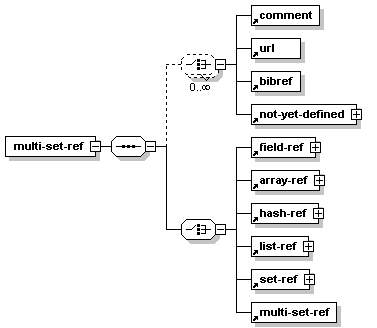

multi-set-ref

none

not-yet-defined

now

numerical-constant

numerical-scale-def

on-abort

on-suspend

one-of

operation

parameter-group

parameter-proposition

parameter-ref

patient-record-def

plan-activation

plan-group

plan-library

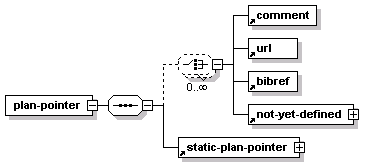

plan-pointer

plan-state-constraint

plan-state-transition

position

put-first

put-last

qualitative-constant

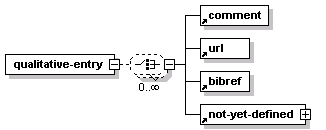

qualitative-entry

qualitative-parameter-def

qualitative-scale-def

raw-data-def

record-def

refer-to

reference-point

references

remove-at-iterator

remove-at-position

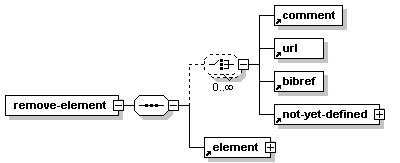

remove-element

repeat-specification

reset-iterator

return-value-assignment

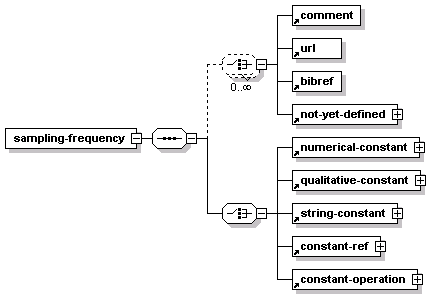

sampling-frequency

scalar-def

self

set

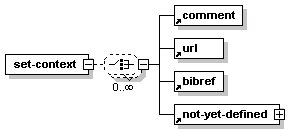

set-context

set-def

set-iterator

set-of-cyclical-time-points

set-ref

simple-condition

simple-condition-combination

simple-condition-not

single-steps

slope-def

spread-def

standard-deviation-def

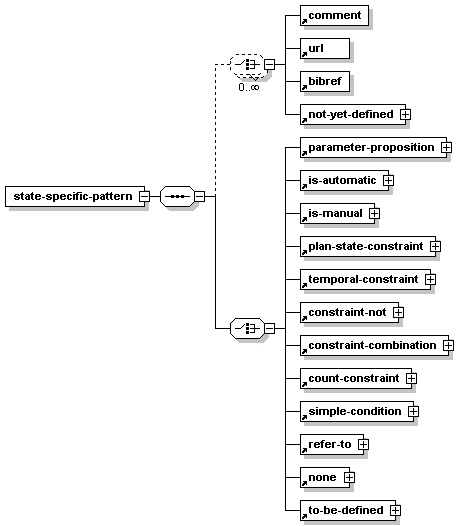

state-specific-pattern

state-specific-pattern-combination

state-specific-pattern-not

static-plan-pointer

string-constant

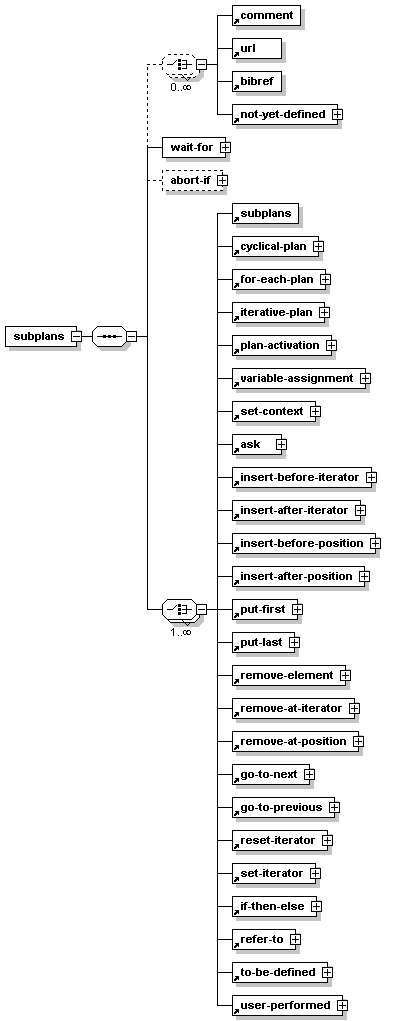

subplans

temporal-constraint

termination-condition

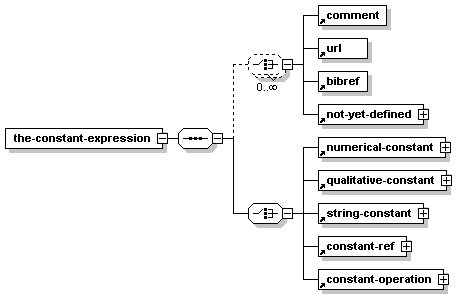

the-constant-expression

the-expression

the-single-step

time-annotation

time-annotation-assignment

time-annotation-ref

time-point

time-range

time-to-alarm-def

to-be-defined

typical-duration

unit-class

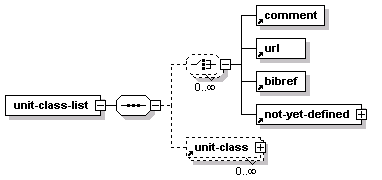

unit-class-list

unit-def

upper-bound

url

user-performed

value-range

variable-assignment

variable-def

variable-ref

wait-for-group

wait-for-not

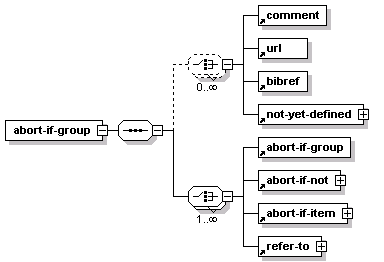

element abort-if-group

diagram
children	comment url bibref not-yet-defined abort-if-group abort-if-not abort-if-item refer-to
used by	elements  subplans/abort-if abort-if-group abort-if-not
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            type   xs:NMTOKEN   required

element abort-if-item

diagram
children	comment url bibref not-yet-defined static-plan-pointer
used by	elements  subplans/abort-if abort-if-group abort-if-not
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            type   xs:NMTOKEN      aborted-or-rejected

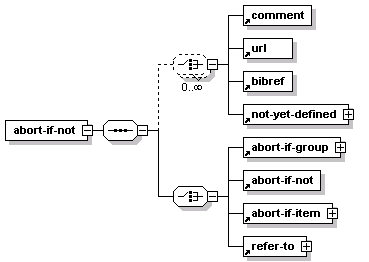

element abort-if-not

diagram
children	comment url bibref not-yet-defined abort-if-group abort-if-not abort-if-item refer-to
used by	elements  subplans/abort-if abort-if-group abort-if-not

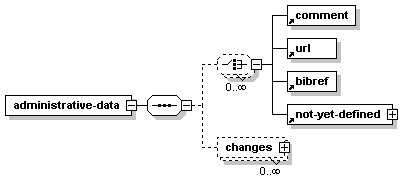

element administrative-data

diagram
children	comment url bibref not-yet-defined changes
used by	elements  plan-library/library-info plan-group/plan
attributes	Name   Type   Use   Default   Fixed   Annotation original-author   xs:string            creation-date   xs:string            release-date   xs:string

element administrative-data/changes

diagram
children	comment url bibref not-yet-defined
attributes	Name   Type   Use   Default   Fixed   Annotation date   xs:string   required         author   xs:string   required         description   xs:string   required

element always

diagram
children	comment url bibref not-yet-defined
used by	elements  time-annotation plan-group/plan/conditions/setup-precondition/waiting-period

element any

diagram
children	comment url bibref not-yet-defined
used by	elements  context time-annotation plan-group/plan/conditions/setup-precondition/waiting-period

element argument

diagram
children	comment url bibref not-yet-defined
used by	elements  plan-group/plan/arguments function-def plan-library/domain-defs/domain/primitive-plan-def
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required         type   xs:NMTOKEN   required         scalar-or-not   xs:NMTOKEN      scalar

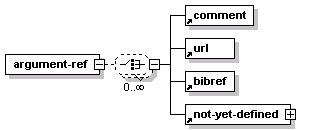

element argument-ref

diagram
children	comment url bibref not-yet-defined
used by	elements  argument-value bound subplans/wait-for/cardinality plan-group/plan/preferences/costs plan-group/plan/preferences/costs count-constraint earliest element reference-point/epsilon explanation set-of-cyclical-time-points/frequency array-ref/index scalar-def/initial-value is-member-of is-within-range iterator-def latest comparison/left-hand-side array-def/dimension-def/length list logical-dependency-def lower-bound maximum minimum multi-set set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value plan-group/plan/returns/return-value comparison/right-hand-side set the-expression ask/time-out time-point typical-duration upper-bound parameter-proposition/value-description variable-assignment variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

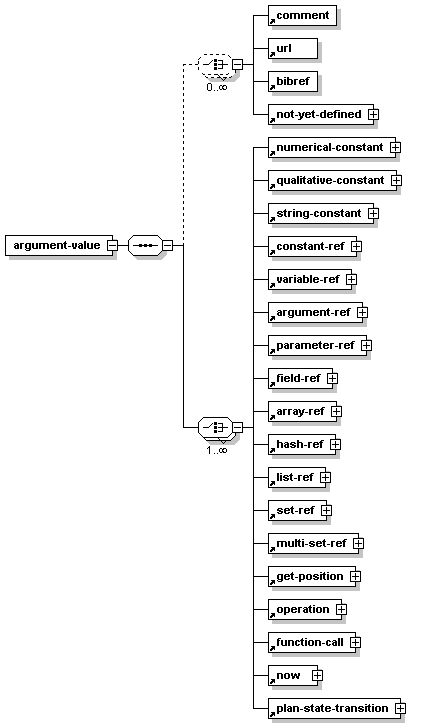

element argument-value

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  for-each-plan/do-for-each function-call plan-activation/plan-schema
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

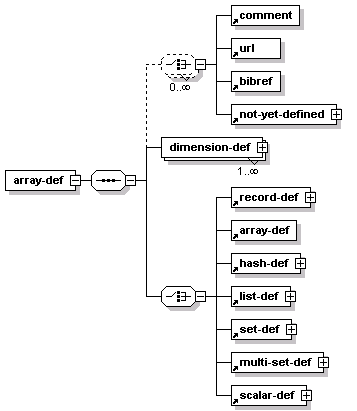

element array-def

diagram
children	comment url bibref not-yet-defined dimension-def record-def array-def hash-def list-def set-def multi-set-def scalar-def
used by	elements  array-def constant-def record-def/field-def hash-def list-def multi-set-def set-def variable-def

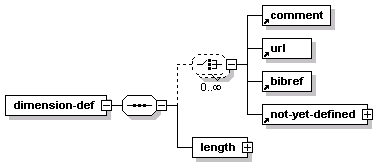

element array-def/dimension-def

diagram
children	comment url bibref not-yet-defined length
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN

element array-def/dimension-def/length

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition

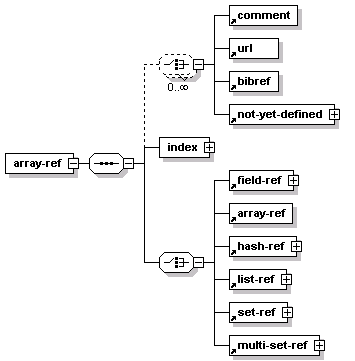

element array-ref

diagram
children	comment url bibref not-yet-defined index field-ref array-ref hash-ref list-ref set-ref multi-set-ref
used by	elements  argument-value array-ref bound subplans/wait-for/cardinality plan-group/plan/preferences/costs count-constraint earliest element reference-point/epsilon explanation field-ref set-of-cyclical-time-points/frequency hash-ref array-ref/index scalar-def/initial-value is-within-range latest comparison/left-hand-side array-def/dimension-def/length list list-ref logical-dependency-def lower-bound maximum minimum multi-set multi-set-ref set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value comparison/right-hand-side set set-ref the-expression ask/time-out time-point typical-duration upper-bound parameter-proposition/value-description variable-assignment

element array-ref/index

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN

element ask

diagram
children	comment url bibref not-yet-defined parameter-ref time-out
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch

element ask/time-out

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition

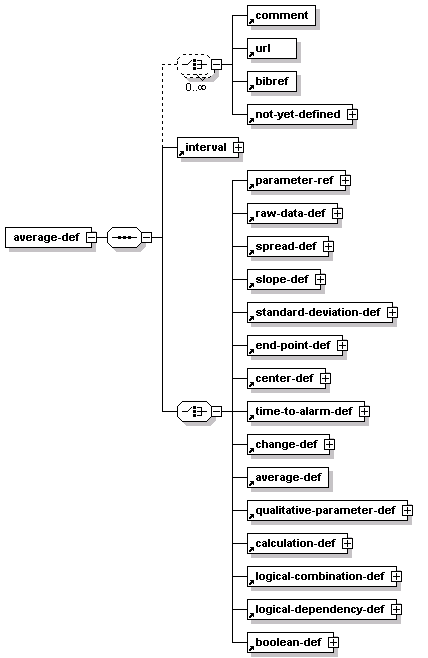

element average-def

diagram
children	comment url bibref not-yet-defined interval parameter-ref raw-data-def spread-def slope-def standard-deviation-def end-point-def center-def time-to-alarm-def change-def average-def qualitative-parameter-def calculation-def logical-combination-def logical-dependency-def boolean-def
used by	elements  average-def calculation-def center-def change-def end-point-def logical-dependency-def parameter-group/parameter-def qualitative-parameter-def slope-def spread-def standard-deviation-def time-to-alarm-def

element bibref

diagram
used by	elements  plan-group/plan/conditions/abort-condition subplans/abort-if abort-if-group abort-if-item abort-if-not administrative-data subplans/wait-for/all always any argument plan-group/plan/effects/argument-dependency argument-ref argument-value plan-group/plan/arguments array-def array-ref ask average-def qualitative-scale-def/secondary-qualitative-entry/based-on-entry boolean-def bound calculation-def subplans/wait-for/cardinality center-def change-def administrative-data/changes comparison plan-group/plan/conditions/complete-condition unit-def/compound-def plan-group/plan/conditions constant-def constant-operation constant-ref constraint-combination constraint-not context context-combination plan-library/domain-defs/domain/context-def context-not context-ref plan-group/plan/preferences/costs count-constraint qualitative-parameter-def/limits/cross-over-time cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition cyclical-plan cyclical-plan/cyclical-plan-body cyclical-time-annotation cyclical-time-annotation-assignment cyclical-time-annotation-ref cyclical-time-point-assignment cyclical-time-annotation/cyclical-time-point-ref logical-dependency-def/default plan-group/plan/defaults unit-def/compound-def/denominator plan-group/plan/derived-from array-def/dimension-def do-after do-before for-each-plan/do-for-each iterative-plan/do-repeatedly plan-library/domain-defs/domain plan-library/domain-defs duration earliest plan-group/plan/effects element if-then-else/else-branch end-point-def cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/end-time reference-point/epsilon explanation field-ref plan-group/plan/conditions/filter-precondition time-range/finishing-shift numerical-scale-def/first-unit-entry-equals for-each-plan set-of-cyclical-time-points/frequency function-call function-def get-position go-to-next go-to-previous parameter-group/parameter-def/hard-bounds has-occurred hash-def hash-ref if-then-else array-ref/index scalar-def/initial-value insert-after-iterator insert-after-position insert-before-iterator insert-before-position plan-group/plan/intentions/intention plan-group/plan/intentions interval invoking-plan is-at-end is-at-start is-automatic parameter-proposition/is-known-parameter is-known-variable is-manual is-member-of parameter-proposition/is-unknown-parameter is-unknown-variable is-within-range iterative-plan iterator-def latest comparison/left-hand-side array-def/dimension-def/length plan-library/library-defs time-to-alarm-def/limit qualitative-parameter-def/limits/limit-entry qualitative-parameter-def/limits list list-def list-ref logical-combination-def logical-dependency-def lower-bound raw-data-def/maximal-decrease raw-data-def/maximal-increase maximum raw-data-def/maximum-value minimum spread-def/minimum-of-valid-points raw-data-def/minimum-value multi-set multi-set-def multi-set-ref qualitative-parameter-def/limits/negative-infinite none not-yet-defined now unit-def/compound-def/numerator numerical-constant numerical-scale-def set-of-cyclical-time-points/offset on-abort on-suspend subplans/wait-for/one one-of operation parameter-group/parameter-def parameter-group parameter-proposition parameter-ref patient-record-def plan-group/plan plan-activation plan-group/plan/plan-body plan-group/plan/effects/plan-effect plan-group plan-library plan-pointer plan-activation/plan-schema plan-state-constraint plan-state-transition plan-library/plans position qualitative-parameter-def/limits/positive-infinite plan-group/plan/preferences patient-record-def/primary-key plan-library/domain-defs/domain/primitive-plan-def put-first put-last qualitative-constant qualitative-entry qualitative-parameter-def qualitative-scale-def raw-data-def plan-group/plan/conditions/reactivate-condition record-def refer-to reference-point references plan-group/plan/refers-to remove-at-iterator remove-at-position remove-element repeat-specification reset-iterator plan-group/plan/preferences/resource-constraint repeat-specification/retry-delay plan-group/plan/returns/return-value return-value-assignment plan-group/plan/returns comparison/right-hand-side sampling-frequency scalar-def qualitative-scale-def/secondary-qualitative-entry self set set-context set-def set-iterator cyclical-plan/set-of-cyclical-complete-conditions set-of-cyclical-time-points set-ref plan-group/plan/conditions/setup-precondition simple-condition simple-condition-combination simple-condition-not single-steps slope-def parameter-group/parameter-def/soft-bounds spread-def standard-deviation-def cyclical-plan/start-time time-range/starting-shift state-specific-pattern state-specific-pattern-combination state-specific-pattern-not static-plan-pointer spread-def/step-width string-constant subplans plan-group/plan/conditions/suspend-condition temporal-constraint termination-condition the-constant-expression the-expression the-single-step if-then-else/then-branch time-annotation time-annotation-assignment time-annotation-ref ask/time-out time-point time-range time-to-alarm-def spread-def/time-window-size to-be-defined raw-data-def/trust-period typical-duration unit-class unit-class-list unit-def numerical-scale-def/unit-entry cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition upper-bound plan-library/domain-defs/use-domain user-performed parameter-proposition/value-description value-range one-of/value-ref variable-assignment variable-ref subplans/wait-for wait-for-group wait-for-not plan-group/plan/conditions/setup-precondition/waiting-period
attributes	Name   Type   Use   Default   Fixed   Annotation key   xs:NMTOKEN   required         page   xs:string

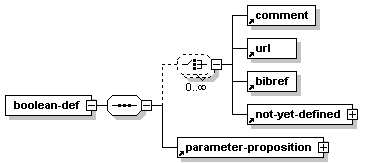

element boolean-def

diagram
children	comment url bibref not-yet-defined parameter-proposition
used by	elements  average-def calculation-def center-def change-def end-point-def logical-combination-def logical-dependency-def parameter-group/parameter-def qualitative-parameter-def slope-def spread-def standard-deviation-def time-to-alarm-def

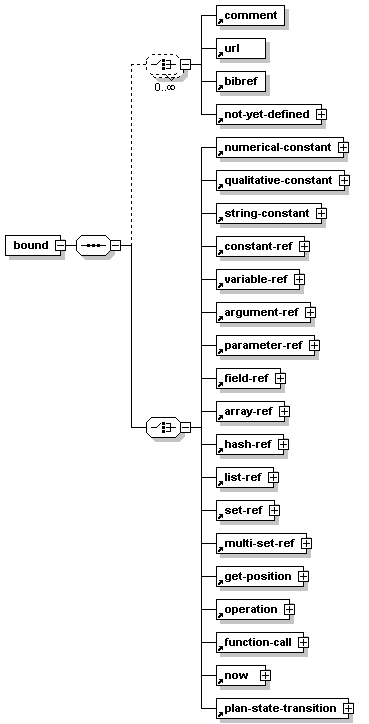

element bound

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
attributes	Name   Type   Use   Default   Fixed   Annotation include-limit   xs:NMTOKEN      yes

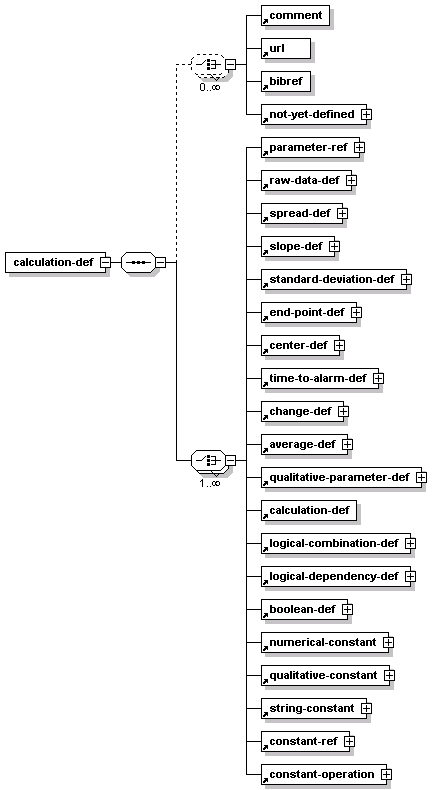

element calculation-def

diagram
children	comment url bibref not-yet-defined parameter-ref raw-data-def spread-def slope-def standard-deviation-def end-point-def center-def time-to-alarm-def change-def average-def qualitative-parameter-def calculation-def logical-combination-def logical-dependency-def boolean-def numerical-constant qualitative-constant string-constant constant-ref constant-operation
used by	elements  average-def calculation-def center-def change-def end-point-def logical-dependency-def parameter-group/parameter-def qualitative-parameter-def slope-def spread-def standard-deviation-def time-to-alarm-def
attributes	Name   Type   Use   Default   Fixed   Annotation operator   xs:NMTOKEN   required

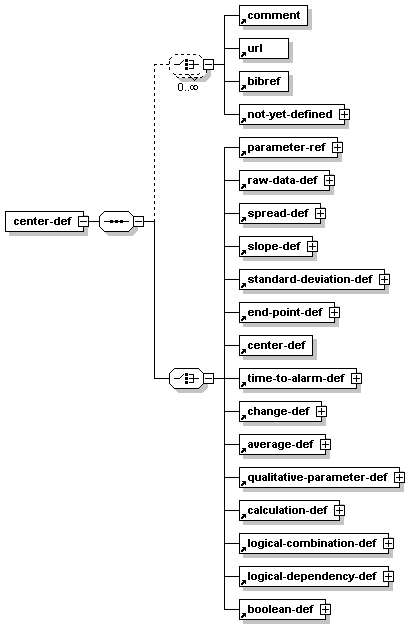

element center-def

diagram
children	comment url bibref not-yet-defined parameter-ref raw-data-def spread-def slope-def standard-deviation-def end-point-def center-def time-to-alarm-def change-def average-def qualitative-parameter-def calculation-def logical-combination-def logical-dependency-def boolean-def
used by	elements  average-def calculation-def center-def change-def end-point-def logical-dependency-def parameter-group/parameter-def qualitative-parameter-def slope-def spread-def standard-deviation-def time-to-alarm-def

element change-def

diagram
children	comment url bibref not-yet-defined interval parameter-ref raw-data-def spread-def slope-def standard-deviation-def end-point-def center-def time-to-alarm-def change-def average-def qualitative-parameter-def calculation-def logical-combination-def logical-dependency-def boolean-def
used by	elements  average-def calculation-def center-def change-def end-point-def logical-dependency-def parameter-group/parameter-def qualitative-parameter-def slope-def spread-def standard-deviation-def time-to-alarm-def

element comment

diagram
used by	elements  plan-group/plan/conditions/abort-condition subplans/abort-if abort-if-group abort-if-item abort-if-not administrative-data subplans/wait-for/all always any argument plan-group/plan/effects/argument-dependency argument-ref argument-value plan-group/plan/arguments array-def array-ref ask average-def qualitative-scale-def/secondary-qualitative-entry/based-on-entry boolean-def bound calculation-def subplans/wait-for/cardinality center-def change-def administrative-data/changes comparison plan-group/plan/conditions/complete-condition unit-def/compound-def plan-group/plan/conditions constant-def constant-operation constant-ref constraint-combination constraint-not context context-combination plan-library/domain-defs/domain/context-def context-not context-ref plan-group/plan/preferences/costs count-constraint qualitative-parameter-def/limits/cross-over-time cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition cyclical-plan cyclical-plan/cyclical-plan-body cyclical-time-annotation cyclical-time-annotation-assignment cyclical-time-annotation-ref cyclical-time-point-assignment cyclical-time-annotation/cyclical-time-point-ref logical-dependency-def/default plan-group/plan/defaults unit-def/compound-def/denominator plan-group/plan/derived-from array-def/dimension-def do-after do-before for-each-plan/do-for-each iterative-plan/do-repeatedly plan-library/domain-defs/domain plan-library/domain-defs duration earliest plan-group/plan/effects element if-then-else/else-branch end-point-def cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/end-time reference-point/epsilon explanation field-ref plan-group/plan/conditions/filter-precondition time-range/finishing-shift numerical-scale-def/first-unit-entry-equals for-each-plan set-of-cyclical-time-points/frequency function-call function-def get-position go-to-next go-to-previous parameter-group/parameter-def/hard-bounds has-occurred hash-def hash-ref if-then-else array-ref/index scalar-def/initial-value insert-after-iterator insert-after-position insert-before-iterator insert-before-position plan-group/plan/intentions/intention plan-group/plan/intentions interval invoking-plan is-at-end is-at-start is-automatic parameter-proposition/is-known-parameter is-known-variable is-manual is-member-of parameter-proposition/is-unknown-parameter is-unknown-variable is-within-range iterative-plan iterator-def latest comparison/left-hand-side array-def/dimension-def/length plan-library/library-defs time-to-alarm-def/limit qualitative-parameter-def/limits/limit-entry qualitative-parameter-def/limits list list-def list-ref logical-combination-def logical-dependency-def lower-bound raw-data-def/maximal-decrease raw-data-def/maximal-increase maximum raw-data-def/maximum-value minimum spread-def/minimum-of-valid-points raw-data-def/minimum-value multi-set multi-set-def multi-set-ref qualitative-parameter-def/limits/negative-infinite none not-yet-defined now unit-def/compound-def/numerator numerical-constant numerical-scale-def set-of-cyclical-time-points/offset on-abort on-suspend subplans/wait-for/one one-of operation parameter-group/parameter-def parameter-group parameter-proposition parameter-ref patient-record-def plan-group/plan plan-activation plan-group/plan/plan-body plan-group/plan/effects/plan-effect plan-group plan-library plan-pointer plan-activation/plan-schema plan-state-constraint plan-state-transition plan-library/plans position qualitative-parameter-def/limits/positive-infinite plan-group/plan/preferences patient-record-def/primary-key plan-library/domain-defs/domain/primitive-plan-def put-first put-last qualitative-constant qualitative-entry qualitative-parameter-def qualitative-scale-def raw-data-def plan-group/plan/conditions/reactivate-condition record-def refer-to reference-point references plan-group/plan/refers-to remove-at-iterator remove-at-position remove-element repeat-specification reset-iterator plan-group/plan/preferences/resource-constraint repeat-specification/retry-delay plan-group/plan/returns/return-value return-value-assignment plan-group/plan/returns comparison/right-hand-side sampling-frequency scalar-def qualitative-scale-def/secondary-qualitative-entry self set set-context set-def set-iterator cyclical-plan/set-of-cyclical-complete-conditions set-of-cyclical-time-points set-ref plan-group/plan/conditions/setup-precondition simple-condition simple-condition-combination simple-condition-not single-steps slope-def parameter-group/parameter-def/soft-bounds spread-def standard-deviation-def cyclical-plan/start-time time-range/starting-shift state-specific-pattern state-specific-pattern-combination state-specific-pattern-not static-plan-pointer spread-def/step-width string-constant subplans plan-group/plan/conditions/suspend-condition temporal-constraint termination-condition the-constant-expression the-expression the-single-step if-then-else/then-branch time-annotation time-annotation-assignment time-annotation-ref ask/time-out time-point time-range time-to-alarm-def spread-def/time-window-size to-be-defined raw-data-def/trust-period typical-duration unit-class unit-class-list unit-def numerical-scale-def/unit-entry cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition upper-bound plan-library/domain-defs/use-domain user-performed parameter-proposition/value-description value-range one-of/value-ref variable-assignment variable-ref subplans/wait-for wait-for-group wait-for-not plan-group/plan/conditions/setup-precondition/waiting-period
attributes	Name   Type   Use   Default   Fixed   Annotation text   xs:string   required

element comparison

diagram
children	comment url bibref not-yet-defined left-hand-side right-hand-side
used by	elements  simple-condition simple-condition-combination simple-condition-not termination-condition
attributes	Name   Type   Use   Default   Fixed   Annotation type   xs:NMTOKEN   required

element comparison/left-hand-side

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition

element comparison/right-hand-side

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition

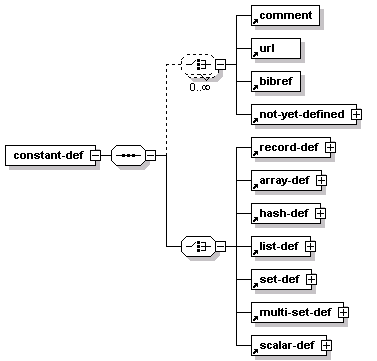

element constant-def

diagram
children	comment url bibref not-yet-defined record-def array-def hash-def list-def set-def multi-set-def scalar-def
used by	elements  plan-library/domain-defs/domain plan-library/library-defs plan-group/plan/value-defs
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element constant-operation

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref constant-operation
used by	elements  calculation-def constant-operation qualitative-parameter-def/limits/cross-over-time interval time-to-alarm-def/limit raw-data-def/maximal-decrease raw-data-def/maximal-increase raw-data-def/maximum-value spread-def/minimum-of-valid-points raw-data-def/minimum-value sampling-frequency spread-def/step-width the-constant-expression spread-def/time-window-size raw-data-def/trust-period
attributes	Name   Type   Use   Default   Fixed   Annotation operator   xs:NMTOKEN   required

element constant-ref

diagram
children	comment url bibref not-yet-defined
used by	elements  argument-value bound calculation-def subplans/wait-for/cardinality constant-operation plan-group/plan/preferences/costs plan-group/plan/preferences/costs count-constraint qualitative-parameter-def/limits/cross-over-time earliest element reference-point/epsilon explanation set-of-cyclical-time-points/frequency array-ref/index scalar-def/initial-value interval is-member-of is-within-range iterator-def latest comparison/left-hand-side array-def/dimension-def/length time-to-alarm-def/limit list logical-dependency-def lower-bound raw-data-def/maximal-decrease raw-data-def/maximal-increase maximum raw-data-def/maximum-value minimum spread-def/minimum-of-valid-points raw-data-def/minimum-value multi-set set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value plan-group/plan/returns/return-value comparison/right-hand-side sampling-frequency set spread-def/step-width the-constant-expression the-expression ask/time-out time-point spread-def/time-window-size raw-data-def/trust-period typical-duration upper-bound parameter-proposition/value-description variable-assignment variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

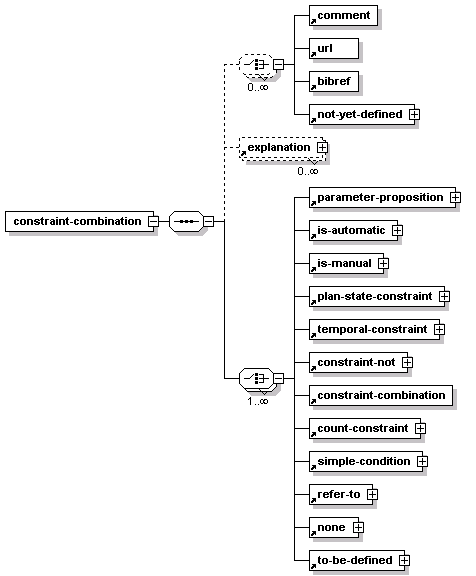

element constraint-combination

diagram
children	comment url bibref not-yet-defined explanation parameter-proposition is-automatic is-manual plan-state-constraint temporal-constraint constraint-not constraint-combination count-constraint simple-condition refer-to none to-be-defined
used by	elements  plan-group/plan/conditions/abort-condition plan-group/plan/conditions/complete-condition constraint-combination constraint-not count-constraint plan-group/plan/conditions/filter-precondition plan-group/plan/intentions/intention plan-group/plan/conditions/reactivate-condition plan-group/plan/conditions/setup-precondition state-specific-pattern plan-group/plan/conditions/suspend-condition temporal-constraint temporal-constraint cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            type   xs:NMTOKEN   required         importance   xs:NMTOKEN

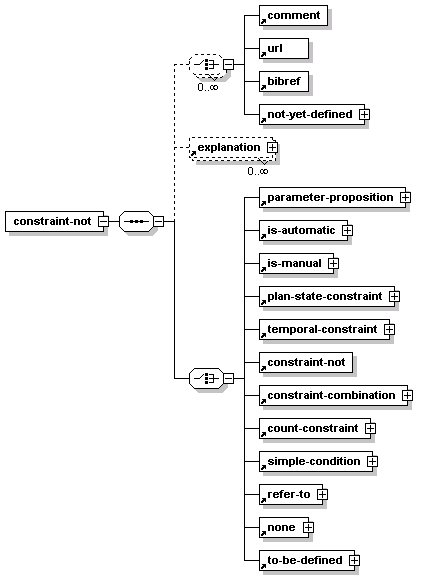

element constraint-not

diagram
children	comment url bibref not-yet-defined explanation parameter-proposition is-automatic is-manual plan-state-constraint temporal-constraint constraint-not constraint-combination count-constraint simple-condition refer-to none to-be-defined
used by	elements  plan-group/plan/conditions/abort-condition plan-group/plan/conditions/complete-condition constraint-combination constraint-not count-constraint plan-group/plan/conditions/filter-precondition plan-group/plan/intentions/intention plan-group/plan/conditions/reactivate-condition plan-group/plan/conditions/setup-precondition state-specific-pattern plan-group/plan/conditions/suspend-condition temporal-constraint temporal-constraint cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            importance   xs:NMTOKEN

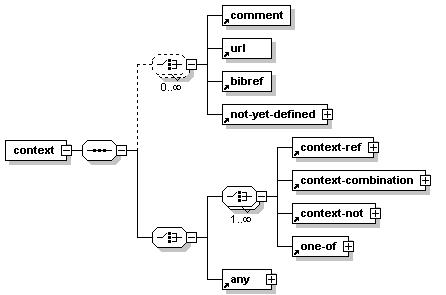

element context

diagram
children	comment url bibref not-yet-defined context-ref context-combination context-not one-of any
used by	elements  plan-group/plan/effects/argument-dependency qualitative-parameter-def/limits parameter-proposition plan-group/plan/effects/plan-effect

element context-combination

diagram
children	comment url bibref not-yet-defined context-ref context-combination context-not one-of
used by	elements  context context-combination context-not
attributes	Name   Type   Use   Default   Fixed   Annotation operator   xs:NMTOKEN   required

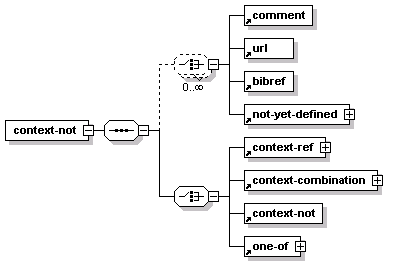

element context-not

diagram
children	comment url bibref not-yet-defined context-ref context-combination context-not one-of
used by	elements  context context-combination context-not

element context-ref

diagram
children	comment url bibref not-yet-defined
used by	elements  context context-combination context-not
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

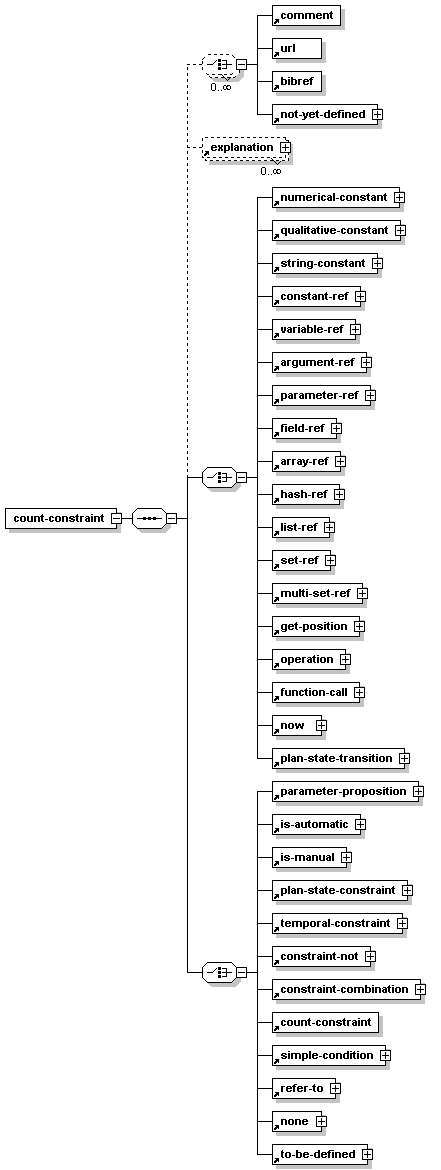

element count-constraint

diagram
children	comment url bibref not-yet-defined explanation numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition parameter-proposition is-automatic is-manual plan-state-constraint temporal-constraint constraint-not constraint-combination count-constraint simple-condition refer-to none to-be-defined
used by	elements  plan-group/plan/conditions/abort-condition plan-group/plan/conditions/complete-condition constraint-combination constraint-not count-constraint plan-group/plan/conditions/filter-precondition plan-group/plan/intentions/intention plan-group/plan/conditions/reactivate-condition plan-group/plan/conditions/setup-precondition state-specific-pattern plan-group/plan/conditions/suspend-condition temporal-constraint temporal-constraint cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            importance   xs:NMTOKEN

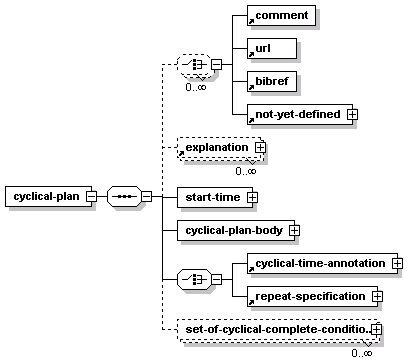

element cyclical-plan

diagram
children	comment url bibref not-yet-defined explanation start-time cyclical-plan-body cyclical-time-annotation repeat-specification set-of-cyclical-complete-conditions
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before plan-group/plan/plan-body subplans
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            max-attempts   xs:NMTOKEN

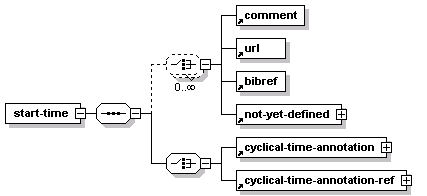

element cyclical-plan/start-time

diagram
children	comment url bibref not-yet-defined cyclical-time-annotation cyclical-time-annotation-ref
attributes	Name   Type   Use   Default   Fixed   Annotation number   xs:NMTOKEN      1

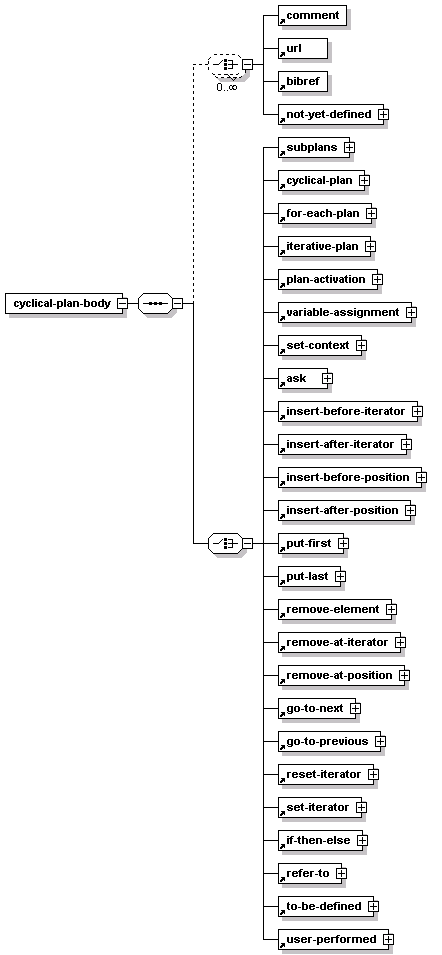

element cyclical-plan/cyclical-plan-body

diagram

children

comment url bibref not-yet-defined subplans cyclical-plan for-each-plan iterative-plan plan-activation variable-assignment set-context ask insert-before-iterator insert-after-iterator insert-before-position insert-after-position put-first put-last remove-element remove-at-iterator remove-at-position go-to-next go-to-previous reset-iterator set-iterator if-then-else refer-to to-be-defined user-performed

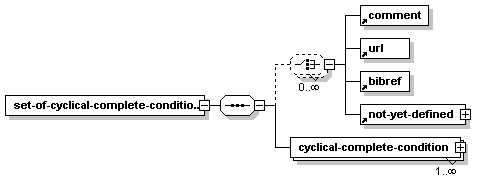

element cyclical-plan/set-of-cyclical-complete-conditions

diagram
children	comment url bibref not-yet-defined cyclical-complete-condition
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            constraint   xs:NMTOKEN

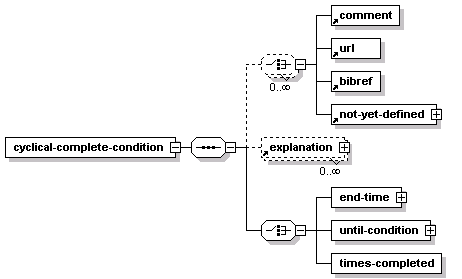

element cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition

diagram
children	comment url bibref not-yet-defined explanation end-time until-condition times-completed
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            overridable   xs:NMTOKEN      no      confirmation-required   xs:NMTOKEN      no

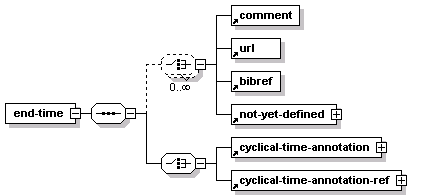

element cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/end-time

diagram
children	comment url bibref not-yet-defined cyclical-time-annotation cyclical-time-annotation-ref
attributes	Name   Type   Use   Default   Fixed   Annotation number   xs:NMTOKEN      1

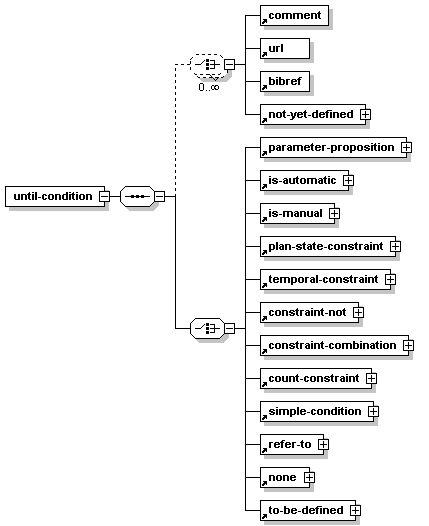

element cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition

diagram
children	comment url bibref not-yet-defined parameter-proposition is-automatic is-manual plan-state-constraint temporal-constraint constraint-not constraint-combination count-constraint simple-condition refer-to none to-be-defined
attributes	Name   Type   Use   Default   Fixed   Annotation overridable   xs:NMTOKEN      no      confirmation-required   xs:NMTOKEN      no

element cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/times-completed

diagram
attributes	Name   Type   Use   Default   Fixed   Annotation number   xs:NMTOKEN      1

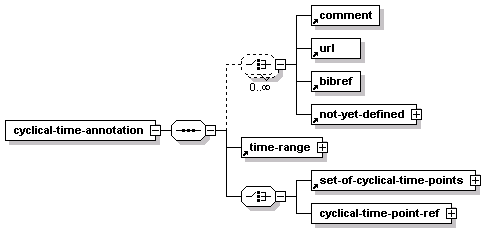

element cyclical-time-annotation

diagram
children	comment url bibref not-yet-defined time-range set-of-cyclical-time-points cyclical-time-point-ref
used by	elements  cyclical-plan cyclical-time-annotation-assignment cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/end-time raw-data-def cyclical-plan/start-time

element cyclical-time-annotation/cyclical-time-point-ref

diagram
children	comment url bibref not-yet-defined
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element cyclical-time-annotation-assignment

diagram
children	comment url bibref not-yet-defined cyclical-time-annotation
used by	elements  plan-library/domain-defs/domain plan-library/library-defs
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element cyclical-time-annotation-ref

diagram
children	comment url bibref not-yet-defined
used by	elements  cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/end-time cyclical-plan/start-time
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

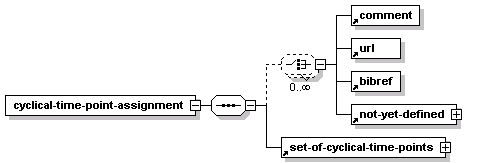

element cyclical-time-point-assignment

diagram
children	comment url bibref not-yet-defined set-of-cyclical-time-points
used by	elements  plan-library/domain-defs/domain plan-library/library-defs
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element do-after

diagram
children	comment url bibref not-yet-defined subplans cyclical-plan for-each-plan iterative-plan plan-activation variable-assignment set-context ask insert-before-iterator insert-after-iterator insert-before-position insert-after-position put-first put-last remove-element remove-at-iterator remove-at-position go-to-next go-to-previous reset-iterator set-iterator if-then-else refer-to to-be-defined user-performed
used by	elements  for-each-plan iterative-plan

element do-before

diagram
children	comment url bibref not-yet-defined subplans cyclical-plan for-each-plan iterative-plan plan-activation variable-assignment set-context ask insert-before-iterator insert-after-iterator insert-before-position insert-after-position put-first put-last remove-element remove-at-iterator remove-at-position go-to-next go-to-previous reset-iterator set-iterator if-then-else refer-to to-be-defined user-performed
used by	elements  for-each-plan iterative-plan

element duration

diagram
children	comment url bibref not-yet-defined minimum maximum
used by	elements  repeat-specification time-range
attributes	Name   Type   Use   Default   Fixed   Annotation include-limit-value   xs:NMTOKEN      yes

element earliest

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  time-range/finishing-shift time-range/starting-shift

element element

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  insert-after-iterator insert-after-position insert-before-iterator insert-before-position is-member-of put-first put-last remove-element set-iterator

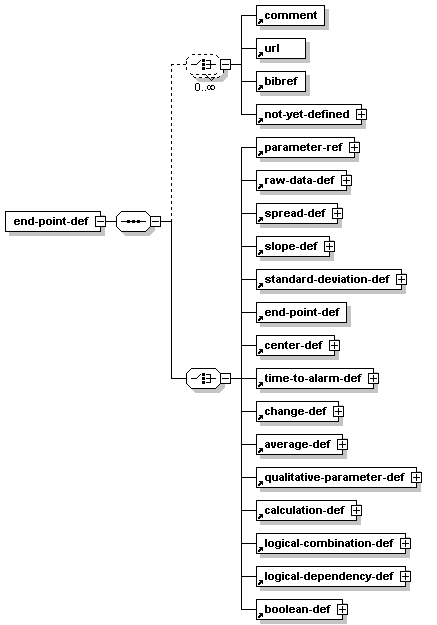

element end-point-def

diagram
children	comment url bibref not-yet-defined parameter-ref raw-data-def spread-def slope-def standard-deviation-def end-point-def center-def time-to-alarm-def change-def average-def qualitative-parameter-def calculation-def logical-combination-def logical-dependency-def boolean-def
used by	elements  average-def calculation-def center-def change-def end-point-def logical-dependency-def parameter-group/parameter-def qualitative-parameter-def slope-def spread-def standard-deviation-def time-to-alarm-def

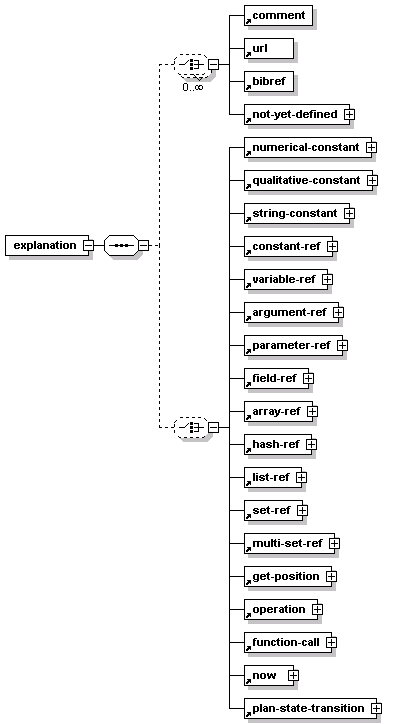

element explanation

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  plan-group/plan/conditions/abort-condition plan-group/plan/conditions/complete-condition constraint-combination constraint-not count-constraint cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition cyclical-plan plan-group/plan/conditions/filter-precondition for-each-plan is-automatic is-manual iterative-plan parameter-proposition plan-group/plan plan-group/plan/conditions/reactivate-condition plan-group/plan/conditions/setup-precondition simple-condition plan-group/plan/conditions/suspend-condition temporal-constraint termination-condition
attributes	Name   Type   Use   Default   Fixed   Annotation text   xs:string

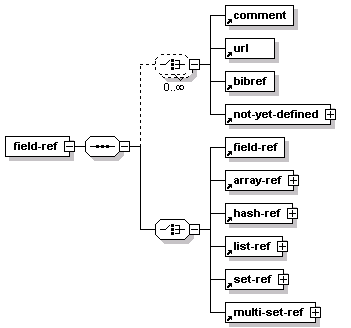

element field-ref

diagram
children	comment url bibref not-yet-defined field-ref array-ref hash-ref list-ref set-ref multi-set-ref
used by	elements  argument-value array-ref bound subplans/wait-for/cardinality plan-group/plan/preferences/costs plan-group/plan/preferences/costs count-constraint earliest element reference-point/epsilon explanation field-ref set-of-cyclical-time-points/frequency hash-ref array-ref/index scalar-def/initial-value is-member-of is-within-range iterator-def latest comparison/left-hand-side array-def/dimension-def/length list list-ref logical-dependency-def lower-bound maximum minimum multi-set multi-set-ref set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value plan-group/plan/returns/return-value comparison/right-hand-side set set-ref the-expression ask/time-out time-point typical-duration upper-bound parameter-proposition/value-description variable-assignment variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation field   xs:NMTOKEN   required

element for-each-plan

diagram
children	comment url bibref not-yet-defined explanation do-before do-for-each termination-condition do-after
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before plan-group/plan/plan-body subplans
attributes	Name   Type   Use   Default   Fixed   Annotation subplan-ordering   xs:NMTOKEN   required         wait-for-children   xs:NMTOKEN      yes      propagation-specification   xs:NMTOKEN      aborted-or-rejected

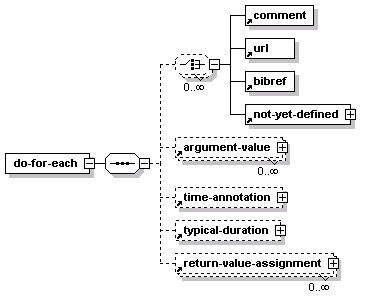

element for-each-plan/do-for-each

diagram
children	comment url bibref not-yet-defined argument-value time-annotation typical-duration return-value-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:IDREF   required

element function-call

diagram
children	comment url bibref not-yet-defined argument-value return-value-assignment
used by	elements  argument-value bound subplans/wait-for/cardinality plan-group/plan/preferences/costs count-constraint earliest element reference-point/epsilon explanation set-of-cyclical-time-points/frequency array-ref/index scalar-def/initial-value is-within-range latest comparison/left-hand-side array-def/dimension-def/length list logical-dependency-def lower-bound maximum minimum multi-set set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value comparison/right-hand-side set the-expression ask/time-out time-point typical-duration upper-bound parameter-proposition/value-description variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

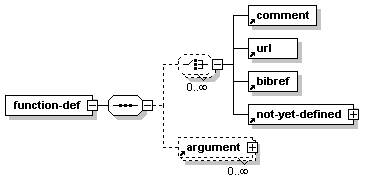

element function-def

diagram
children	comment url bibref not-yet-defined argument
used by	elements  plan-library/domain-defs/domain plan-library/library-defs
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required         return-type   xs:NMTOKEN   required         method-name   xs:NMTOKEN   required         class-name   xs:NMTOKEN   required

element get-position

diagram
children	comment url bibref not-yet-defined
used by	elements  argument-value bound subplans/wait-for/cardinality plan-group/plan/preferences/costs count-constraint earliest element reference-point/epsilon explanation set-of-cyclical-time-points/frequency array-ref/index scalar-def/initial-value is-within-range latest comparison/left-hand-side array-def/dimension-def/length list logical-dependency-def lower-bound maximum minimum multi-set set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value comparison/right-hand-side set the-expression ask/time-out time-point typical-duration upper-bound parameter-proposition/value-description variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation iterator   xs:NMTOKEN   required

element go-to-next

diagram
children	comment url bibref not-yet-defined
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation iterator   xs:NMTOKEN   required

element go-to-previous

diagram
children	comment url bibref not-yet-defined
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation iterator   xs:NMTOKEN   required

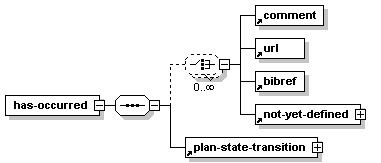

element has-occurred

diagram
children	comment url bibref not-yet-defined plan-state-transition
used by	elements  simple-condition simple-condition-combination simple-condition-not termination-condition

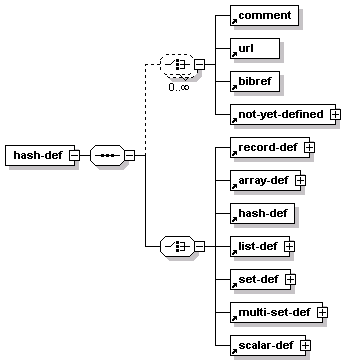

element hash-def

diagram
children	comment url bibref not-yet-defined record-def array-def hash-def list-def set-def multi-set-def scalar-def
used by	elements  array-def constant-def record-def/field-def hash-def list-def multi-set-def set-def variable-def

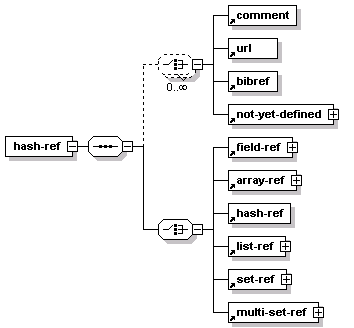

element hash-ref

diagram
children	comment url bibref not-yet-defined field-ref array-ref hash-ref list-ref set-ref multi-set-ref
used by	elements  argument-value array-ref bound subplans/wait-for/cardinality plan-group/plan/preferences/costs count-constraint earliest element reference-point/epsilon explanation field-ref set-of-cyclical-time-points/frequency hash-ref array-ref/index scalar-def/initial-value is-within-range latest comparison/left-hand-side array-def/dimension-def/length list list-ref logical-dependency-def lower-bound maximum minimum multi-set multi-set-ref set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value comparison/right-hand-side set set-ref the-expression ask/time-out time-point typical-duration upper-bound parameter-proposition/value-description variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation key   xs:NMTOKEN   required

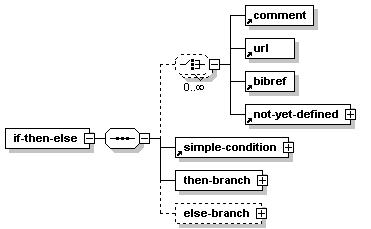

element if-then-else

diagram
children	comment url bibref not-yet-defined simple-condition then-branch else-branch
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch

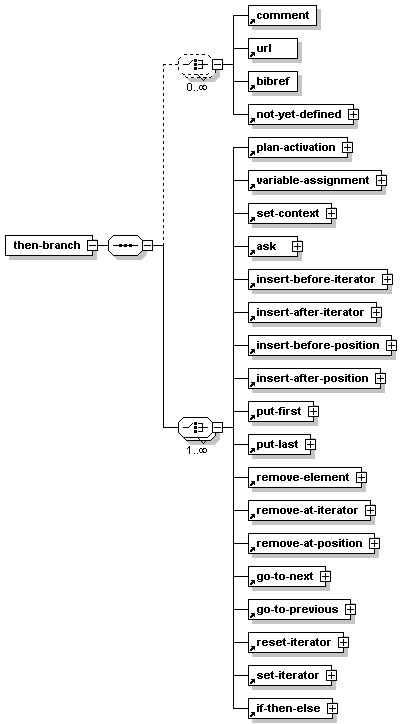

element if-then-else/then-branch

diagram
children	comment url bibref not-yet-defined plan-activation variable-assignment set-context ask insert-before-iterator insert-after-iterator insert-before-position insert-after-position put-first put-last remove-element remove-at-iterator remove-at-position go-to-next go-to-previous reset-iterator set-iterator if-then-else

element if-then-else/else-branch

diagram
children	comment url bibref not-yet-defined plan-activation variable-assignment set-context ask insert-before-iterator insert-after-iterator insert-before-position insert-after-position put-first put-last remove-element remove-at-iterator remove-at-position go-to-next go-to-previous reset-iterator set-iterator if-then-else

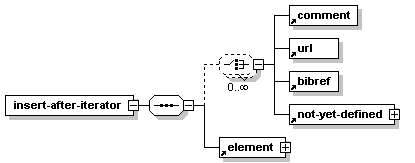

element insert-after-iterator

diagram
children	comment url bibref not-yet-defined element
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation iterator   xs:NMTOKEN   required

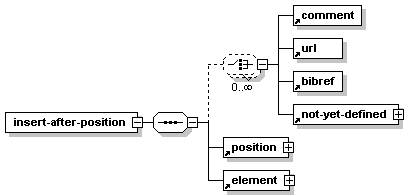

element insert-after-position

diagram
children	comment url bibref not-yet-defined position element
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation list   xs:NMTOKEN   required

element insert-before-iterator

diagram
children	comment url bibref not-yet-defined element
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation iterator   xs:NMTOKEN   required

element insert-before-position

diagram
children	comment url bibref not-yet-defined position element
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation list   xs:NMTOKEN   required

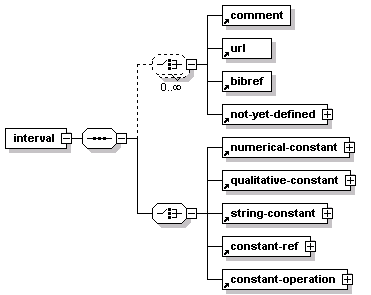

element interval

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref constant-operation
used by	elements  average-def change-def

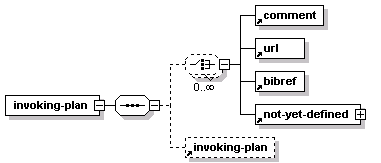

element invoking-plan

diagram
children	comment url bibref not-yet-defined invoking-plan
used by	elements  invoking-plan static-plan-pointer
attributes	Name   Type   Use   Default   Fixed   Annotation plan-name   xs:IDREF   required

element is-at-end

diagram
children	comment url bibref not-yet-defined
used by	elements  simple-condition simple-condition-combination simple-condition-not termination-condition
attributes	Name   Type   Use   Default   Fixed   Annotation iterator   xs:NMTOKEN   required

element is-at-start

diagram
children	comment url bibref not-yet-defined
used by	elements  simple-condition simple-condition-combination simple-condition-not termination-condition
attributes	Name   Type   Use   Default   Fixed   Annotation iterator   xs:NMTOKEN   required

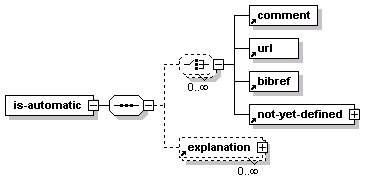

element is-automatic

diagram
children	comment url bibref not-yet-defined explanation
used by	elements  plan-group/plan/conditions/abort-condition plan-group/plan/conditions/complete-condition constraint-combination constraint-not count-constraint plan-group/plan/conditions/filter-precondition plan-group/plan/intentions/intention plan-group/plan/conditions/reactivate-condition plan-group/plan/conditions/setup-precondition state-specific-pattern plan-group/plan/conditions/suspend-condition temporal-constraint temporal-constraint cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition
attributes	Name   Type   Use   Default   Fixed   Annotation parameter-name   xs:NMTOKEN   required         label   xs:NMTOKEN            importance   xs:NMTOKEN

element is-known-variable

diagram
children	comment url bibref not-yet-defined
used by	elements  simple-condition simple-condition-combination simple-condition-not termination-condition
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element is-manual

diagram
children	comment url bibref not-yet-defined explanation
used by	elements  plan-group/plan/conditions/abort-condition plan-group/plan/conditions/complete-condition constraint-combination constraint-not count-constraint plan-group/plan/conditions/filter-precondition plan-group/plan/intentions/intention plan-group/plan/conditions/reactivate-condition plan-group/plan/conditions/setup-precondition state-specific-pattern plan-group/plan/conditions/suspend-condition temporal-constraint temporal-constraint cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition
attributes	Name   Type   Use   Default   Fixed   Annotation parameter-name   xs:NMTOKEN   required         label   xs:NMTOKEN            importance   xs:NMTOKEN

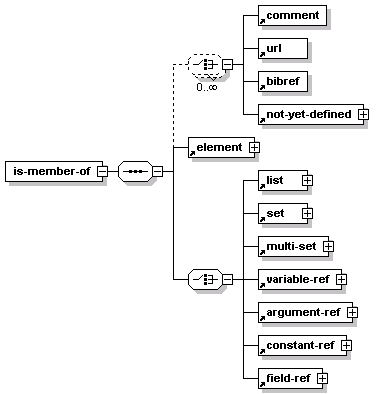

element is-member-of

diagram
children	comment url bibref not-yet-defined element list set multi-set variable-ref argument-ref constant-ref field-ref
used by	elements  simple-condition simple-condition-combination simple-condition-not termination-condition

element is-unknown-variable

diagram
children	comment url bibref not-yet-defined
used by	elements  simple-condition simple-condition-combination simple-condition-not termination-condition
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element is-within-range

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition value-range
used by	elements  simple-condition simple-condition-combination simple-condition-not termination-condition

element iterative-plan

diagram
children	comment url bibref not-yet-defined explanation do-before do-repeatedly termination-condition do-after
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before plan-group/plan/plan-body subplans

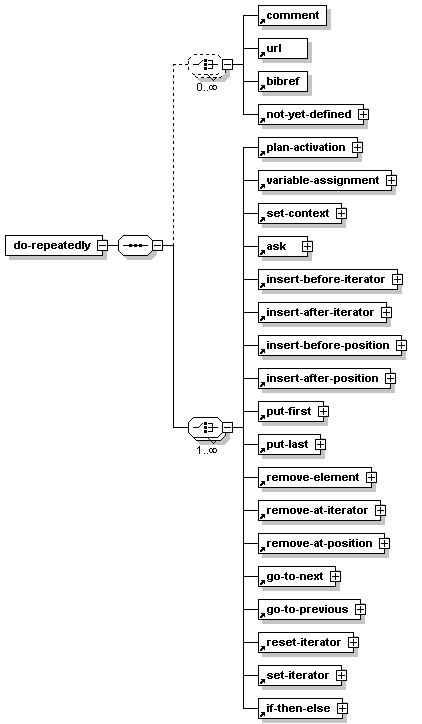

element iterative-plan/do-repeatedly

diagram
children	comment url bibref not-yet-defined plan-activation variable-assignment set-context ask insert-before-iterator insert-after-iterator insert-before-position insert-after-position put-first put-last remove-element remove-at-iterator remove-at-position go-to-next go-to-previous reset-iterator set-iterator if-then-else

element iterator-def

diagram
children	comment url bibref not-yet-defined list set multi-set variable-ref argument-ref constant-ref field-ref
used by	elements  plan-library/domain-defs/domain plan-library/library-defs plan-group/plan/value-defs
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required         start-at   xs:NMTOKEN      first-element

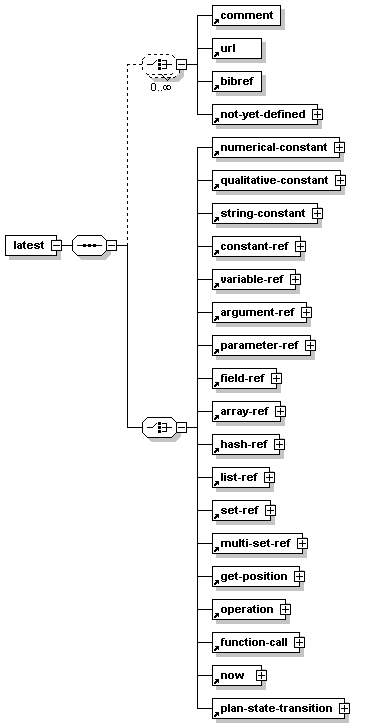

element latest

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  time-range/finishing-shift time-range/starting-shift

element list

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  plan-group/plan/preferences/costs is-member-of iterator-def plan-group/plan/returns/return-value variable-assignment

element list-def

diagram
children	comment url bibref not-yet-defined record-def array-def hash-def list-def set-def multi-set-def scalar-def
used by	elements  array-def constant-def record-def/field-def hash-def list-def multi-set-def set-def variable-def

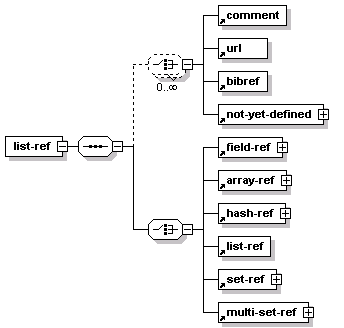

element list-ref

diagram
children	comment url bibref not-yet-defined field-ref array-ref hash-ref list-ref set-ref multi-set-ref
used by	elements  argument-value array-ref bound subplans/wait-for/cardinality plan-group/plan/preferences/costs count-constraint earliest element reference-point/epsilon explanation field-ref set-of-cyclical-time-points/frequency hash-ref array-ref/index scalar-def/initial-value is-within-range latest comparison/left-hand-side array-def/dimension-def/length list list-ref logical-dependency-def lower-bound maximum minimum multi-set multi-set-ref set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value comparison/right-hand-side set set-ref the-expression ask/time-out time-point typical-duration upper-bound parameter-proposition/value-description variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation iterator   xs:NMTOKEN   required         iterator-change   xs:NMTOKEN   required

element logical-combination-def

diagram
children	comment url bibref not-yet-defined parameter-ref logical-combination-def boolean-def raw-data-def
used by	elements  average-def calculation-def center-def change-def end-point-def logical-combination-def logical-dependency-def parameter-group/parameter-def qualitative-parameter-def slope-def spread-def standard-deviation-def time-to-alarm-def
attributes	Name   Type   Use   Default   Fixed   Annotation operator   xs:NMTOKEN   required

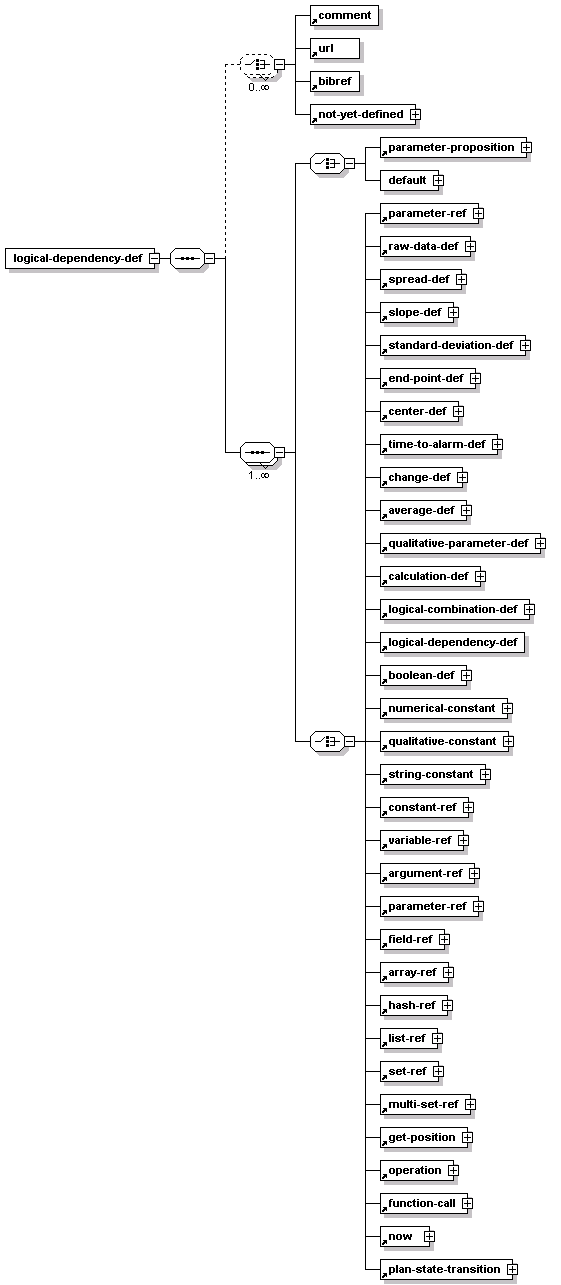

element logical-dependency-def

diagram
children	comment url bibref not-yet-defined parameter-proposition default parameter-ref raw-data-def spread-def slope-def standard-deviation-def end-point-def center-def time-to-alarm-def change-def average-def qualitative-parameter-def calculation-def logical-combination-def logical-dependency-def boolean-def numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  average-def calculation-def center-def change-def end-point-def logical-dependency-def parameter-group/parameter-def qualitative-parameter-def slope-def spread-def standard-deviation-def time-to-alarm-def

element logical-dependency-def/default

diagram
children	comment url bibref not-yet-defined

element lower-bound

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  parameter-group/parameter-def/hard-bounds parameter-group/parameter-def/soft-bounds value-range
attributes	Name   Type   Use   Default   Fixed   Annotation include-limit   xs:NMTOKEN      yes

element maximum

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  duration repeat-specification/retry-delay

element minimum

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  duration repeat-specification/retry-delay

element multi-set

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  plan-group/plan/preferences/costs is-member-of iterator-def plan-group/plan/returns/return-value variable-assignment

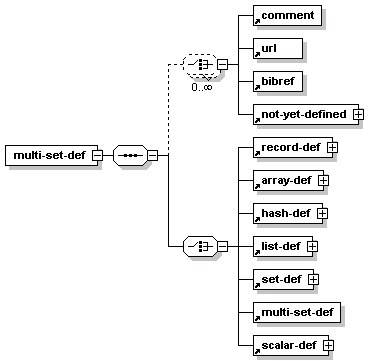

element multi-set-def

diagram
children	comment url bibref not-yet-defined record-def array-def hash-def list-def set-def multi-set-def scalar-def
used by	elements  array-def constant-def record-def/field-def hash-def list-def multi-set-def set-def variable-def

element multi-set-ref

diagram
children	comment url bibref not-yet-defined field-ref array-ref hash-ref list-ref set-ref multi-set-ref
used by	elements  argument-value array-ref bound subplans/wait-for/cardinality plan-group/plan/preferences/costs count-constraint earliest element reference-point/epsilon explanation field-ref set-of-cyclical-time-points/frequency hash-ref array-ref/index scalar-def/initial-value is-within-range latest comparison/left-hand-side array-def/dimension-def/length list list-ref logical-dependency-def lower-bound maximum minimum multi-set multi-set-ref set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value comparison/right-hand-side set set-ref the-expression ask/time-out time-point typical-duration upper-bound parameter-proposition/value-description variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation iterator   xs:NMTOKEN   required         iterator-change   xs:NMTOKEN   required

element none

diagram
children	comment url bibref not-yet-defined
used by	elements  plan-group/plan/conditions/abort-condition subplans/abort-if plan-group/plan/conditions/complete-condition constraint-combination constraint-not count-constraint plan-group/plan/effects plan-group/plan/conditions/filter-precondition plan-group/plan/intentions/intention plan-group/plan/conditions/reactivate-condition plan-group/plan/conditions/setup-precondition state-specific-pattern plan-group/plan/conditions/suspend-condition temporal-constraint temporal-constraint cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition subplans/wait-for
attributes	Name   Type   Use   Default   Fixed   Annotation importance   xs:NMTOKEN

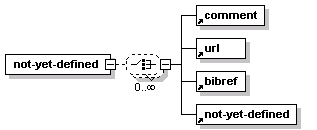

element not-yet-defined

diagram
children	comment url bibref not-yet-defined
used by	elements  plan-group/plan/conditions/abort-condition subplans/abort-if abort-if-group abort-if-item abort-if-not administrative-data subplans/wait-for/all always any argument plan-group/plan/effects/argument-dependency argument-ref argument-value plan-group/plan/arguments array-def array-ref ask average-def qualitative-scale-def/secondary-qualitative-entry/based-on-entry boolean-def bound calculation-def subplans/wait-for/cardinality center-def change-def administrative-data/changes comparison plan-group/plan/conditions/complete-condition unit-def/compound-def plan-group/plan/conditions constant-def constant-operation constant-ref constraint-combination constraint-not context context-combination plan-library/domain-defs/domain/context-def context-not context-ref plan-group/plan/preferences/costs count-constraint qualitative-parameter-def/limits/cross-over-time cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition cyclical-plan cyclical-plan/cyclical-plan-body cyclical-time-annotation cyclical-time-annotation-assignment cyclical-time-annotation-ref cyclical-time-point-assignment cyclical-time-annotation/cyclical-time-point-ref logical-dependency-def/default plan-group/plan/defaults unit-def/compound-def/denominator plan-group/plan/derived-from array-def/dimension-def do-after do-before for-each-plan/do-for-each iterative-plan/do-repeatedly plan-library/domain-defs/domain plan-library/domain-defs duration earliest plan-group/plan/effects element if-then-else/else-branch end-point-def cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/end-time reference-point/epsilon explanation field-ref plan-group/plan/conditions/filter-precondition time-range/finishing-shift numerical-scale-def/first-unit-entry-equals for-each-plan set-of-cyclical-time-points/frequency function-call function-def get-position go-to-next go-to-previous parameter-group/parameter-def/hard-bounds has-occurred hash-def hash-ref if-then-else array-ref/index scalar-def/initial-value insert-after-iterator insert-after-position insert-before-iterator insert-before-position plan-group/plan/intentions/intention plan-group/plan/intentions interval invoking-plan is-at-end is-at-start is-automatic parameter-proposition/is-known-parameter is-known-variable is-manual is-member-of parameter-proposition/is-unknown-parameter is-unknown-variable is-within-range iterative-plan iterator-def latest comparison/left-hand-side array-def/dimension-def/length plan-library/library-defs time-to-alarm-def/limit qualitative-parameter-def/limits/limit-entry qualitative-parameter-def/limits list list-def list-ref logical-combination-def logical-dependency-def lower-bound raw-data-def/maximal-decrease raw-data-def/maximal-increase maximum raw-data-def/maximum-value minimum spread-def/minimum-of-valid-points raw-data-def/minimum-value multi-set multi-set-def multi-set-ref qualitative-parameter-def/limits/negative-infinite none not-yet-defined now unit-def/compound-def/numerator numerical-constant numerical-scale-def set-of-cyclical-time-points/offset on-abort on-suspend subplans/wait-for/one one-of operation parameter-group/parameter-def parameter-group parameter-proposition parameter-ref patient-record-def plan-group/plan plan-activation plan-group/plan/plan-body plan-group/plan/effects/plan-effect plan-group plan-library plan-pointer plan-activation/plan-schema plan-state-constraint plan-state-transition plan-library/plans position qualitative-parameter-def/limits/positive-infinite plan-group/plan/preferences patient-record-def/primary-key plan-library/domain-defs/domain/primitive-plan-def put-first put-last qualitative-constant qualitative-entry qualitative-parameter-def qualitative-scale-def raw-data-def plan-group/plan/conditions/reactivate-condition record-def refer-to reference-point references plan-group/plan/refers-to remove-at-iterator remove-at-position remove-element repeat-specification reset-iterator plan-group/plan/preferences/resource-constraint repeat-specification/retry-delay plan-group/plan/returns/return-value return-value-assignment plan-group/plan/returns comparison/right-hand-side sampling-frequency scalar-def qualitative-scale-def/secondary-qualitative-entry self set set-context set-def set-iterator cyclical-plan/set-of-cyclical-complete-conditions set-of-cyclical-time-points set-ref plan-group/plan/conditions/setup-precondition simple-condition simple-condition-combination simple-condition-not single-steps slope-def parameter-group/parameter-def/soft-bounds spread-def standard-deviation-def cyclical-plan/start-time time-range/starting-shift state-specific-pattern state-specific-pattern-combination state-specific-pattern-not static-plan-pointer spread-def/step-width string-constant subplans plan-group/plan/conditions/suspend-condition temporal-constraint termination-condition the-constant-expression the-expression the-single-step if-then-else/then-branch time-annotation time-annotation-assignment time-annotation-ref ask/time-out time-point time-range time-to-alarm-def spread-def/time-window-size to-be-defined raw-data-def/trust-period typical-duration unit-class unit-class-list unit-def numerical-scale-def/unit-entry cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition upper-bound plan-library/domain-defs/use-domain user-performed parameter-proposition/value-description value-range one-of/value-ref variable-assignment variable-ref subplans/wait-for wait-for-group wait-for-not plan-group/plan/conditions/setup-precondition/waiting-period

element now

diagram
children	comment url bibref not-yet-defined
used by	elements  argument-value bound subplans/wait-for/cardinality plan-group/plan/preferences/costs count-constraint earliest element reference-point/epsilon explanation set-of-cyclical-time-points/frequency array-ref/index scalar-def/initial-value is-within-range latest comparison/left-hand-side array-def/dimension-def/length list logical-dependency-def lower-bound maximum minimum multi-set set-of-cyclical-time-points/offset operation position reference-point references plan-group/plan/returns/return-value comparison/right-hand-side set the-expression time-annotation time-annotation ask/time-out time-point typical-duration upper-bound parameter-proposition/value-description variable-assignment plan-group/plan/conditions/setup-precondition/waiting-period plan-group/plan/conditions/setup-precondition/waiting-period

element numerical-constant

diagram
children	comment url bibref not-yet-defined
used by	elements  argument-value bound calculation-def subplans/wait-for/cardinality constant-operation plan-group/plan/preferences/costs count-constraint qualitative-parameter-def/limits/cross-over-time earliest element reference-point/epsilon explanation set-of-cyclical-time-points/frequency array-ref/index scalar-def/initial-value interval is-within-range latest comparison/left-hand-side array-def/dimension-def/length time-to-alarm-def/limit list logical-dependency-def lower-bound raw-data-def/maximal-decrease raw-data-def/maximal-increase maximum raw-data-def/maximum-value minimum spread-def/minimum-of-valid-points raw-data-def/minimum-value multi-set set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value comparison/right-hand-side sampling-frequency set spread-def/step-width the-constant-expression the-expression ask/time-out time-point spread-def/time-window-size raw-data-def/trust-period typical-duration upper-bound parameter-proposition/value-description variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation value   xs:NMTOKEN   required         unit   xs:string            scale   xs:string

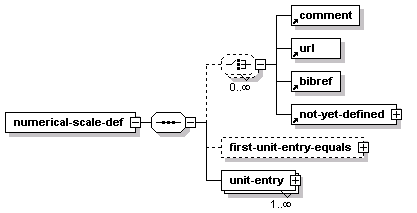

element numerical-scale-def

diagram
children	comment url bibref not-yet-defined first-unit-entry-equals unit-entry
used by	elements  plan-library/domain-defs/domain plan-library/library-defs
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required         unit-class   xs:NMTOKEN   required

element numerical-scale-def/first-unit-entry-equals

diagram
children	comment url bibref not-yet-defined
attributes	Name   Type   Use   Default   Fixed   Annotation value   xs:NMTOKEN   required         unit   xs:string            scale   xs:string

element numerical-scale-def/unit-entry

diagram
children	comment url bibref not-yet-defined
attributes	Name   Type   Use   Default   Fixed   Annotation unit   xs:string            factor   xs:NMTOKEN   required

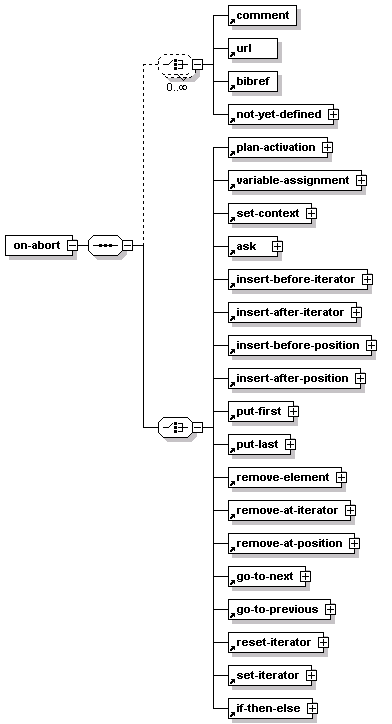

element on-abort

diagram
children	comment url bibref not-yet-defined plan-activation variable-assignment set-context ask insert-before-iterator insert-after-iterator insert-before-position insert-after-position put-first put-last remove-element remove-at-iterator remove-at-position go-to-next go-to-previous reset-iterator set-iterator if-then-else
used by	elements  plan-group/plan/defaults plan-activation

element on-suspend

diagram
children	comment url bibref not-yet-defined plan-activation variable-assignment set-context ask insert-before-iterator insert-after-iterator insert-before-position insert-after-position put-first put-last remove-element remove-at-iterator remove-at-position go-to-next go-to-previous reset-iterator set-iterator if-then-else
used by	elements  plan-group/plan/defaults plan-activation

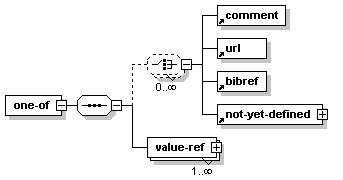

element one-of

diagram
children	comment url bibref not-yet-defined value-ref
used by	elements  context context-combination context-not
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element one-of/value-ref

diagram
children	comment url bibref not-yet-defined
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

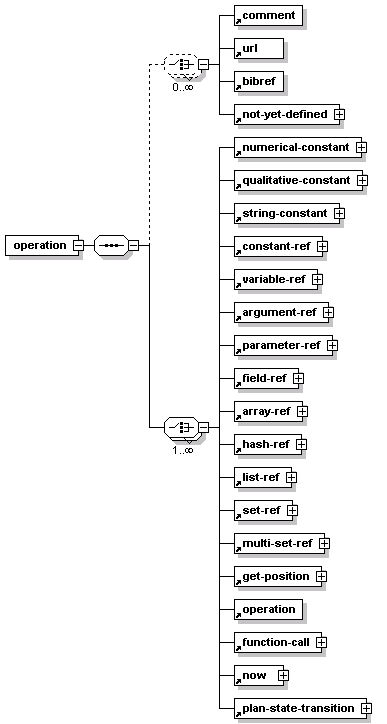

element operation

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  argument-value bound subplans/wait-for/cardinality plan-group/plan/preferences/costs count-constraint earliest element reference-point/epsilon explanation set-of-cyclical-time-points/frequency array-ref/index scalar-def/initial-value is-within-range latest comparison/left-hand-side array-def/dimension-def/length list logical-dependency-def lower-bound maximum minimum multi-set set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value comparison/right-hand-side set the-expression ask/time-out time-point typical-duration upper-bound parameter-proposition/value-description variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation operator   xs:NMTOKEN   required

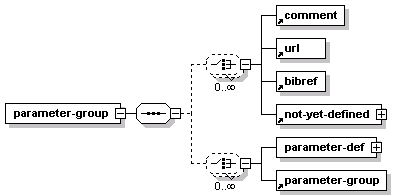

element parameter-group

diagram
children	comment url bibref not-yet-defined parameter-def parameter-group
used by	elements  plan-library/domain-defs/domain parameter-group
attributes	Name   Type   Use   Default   Fixed   Annotation title   xs:string

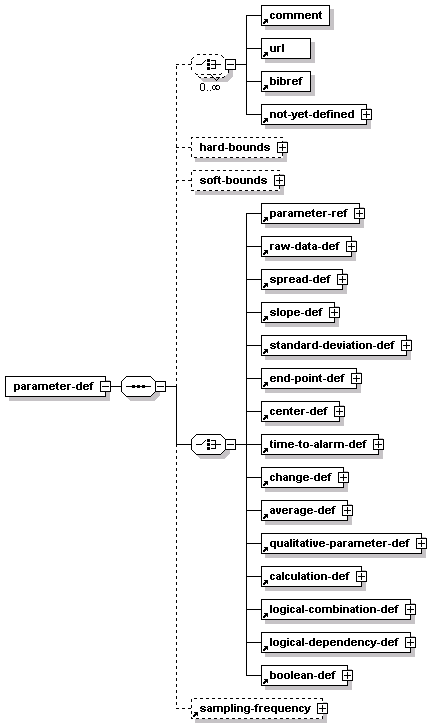

element parameter-group/parameter-def

diagram
children	comment url bibref not-yet-defined hard-bounds soft-bounds parameter-ref raw-data-def spread-def slope-def standard-deviation-def end-point-def center-def time-to-alarm-def change-def average-def qualitative-parameter-def calculation-def logical-combination-def logical-dependency-def boolean-def sampling-frequency
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required         type   xs:NMTOKEN   required         required   xs:NMTOKEN      no

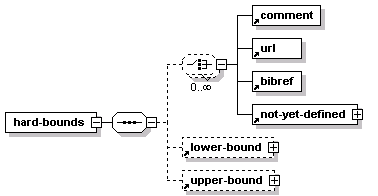

element parameter-group/parameter-def/hard-bounds

diagram
children	comment url bibref not-yet-defined lower-bound upper-bound

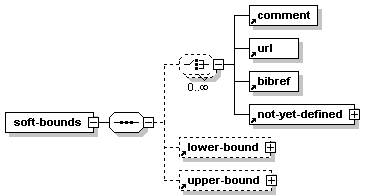

element parameter-group/parameter-def/soft-bounds

diagram
children	comment url bibref not-yet-defined lower-bound upper-bound

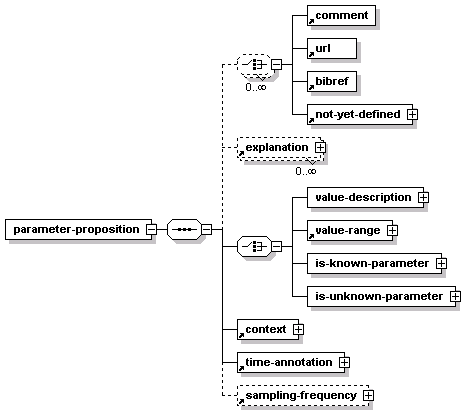

element parameter-proposition

diagram
children	comment url bibref not-yet-defined explanation value-description value-range is-known-parameter is-unknown-parameter context time-annotation sampling-frequency
used by	elements  plan-group/plan/conditions/abort-condition boolean-def plan-group/plan/conditions/complete-condition constraint-combination constraint-not count-constraint plan-group/plan/conditions/filter-precondition plan-group/plan/intentions/intention logical-dependency-def plan-group/plan/conditions/reactivate-condition plan-group/plan/conditions/setup-precondition state-specific-pattern plan-group/plan/conditions/suspend-condition temporal-constraint temporal-constraint cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition
attributes	Name   Type   Use   Default   Fixed   Annotation parameter-name   xs:NMTOKEN   required         label   xs:NMTOKEN            importance   xs:NMTOKEN

element parameter-proposition/value-description

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
attributes	Name   Type   Use   Default   Fixed   Annotation type   xs:NMTOKEN   required

element parameter-proposition/is-known-parameter

diagram
children	comment url bibref not-yet-defined

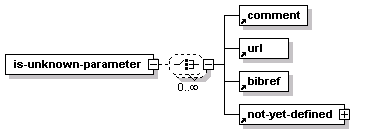

element parameter-proposition/is-unknown-parameter

diagram

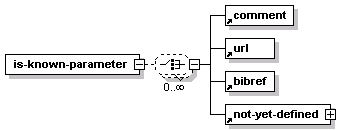

children	comment url bibref not-yet-defined

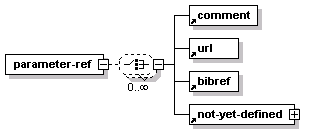

element parameter-ref

diagram
children	comment url bibref not-yet-defined
used by	elements  argument-value ask average-def bound calculation-def subplans/wait-for/cardinality center-def change-def plan-group/plan/preferences/costs count-constraint earliest element end-point-def reference-point/epsilon explanation set-of-cyclical-time-points/frequency array-ref/index scalar-def/initial-value is-within-range latest comparison/left-hand-side array-def/dimension-def/length list logical-combination-def logical-dependency-def logical-dependency-def lower-bound maximum minimum multi-set set-of-cyclical-time-points/offset operation parameter-group/parameter-def position qualitative-parameter-def reference-point plan-group/plan/returns/return-value comparison/right-hand-side set slope-def spread-def standard-deviation-def the-expression ask/time-out time-point time-to-alarm-def typical-duration upper-bound parameter-proposition/value-description variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

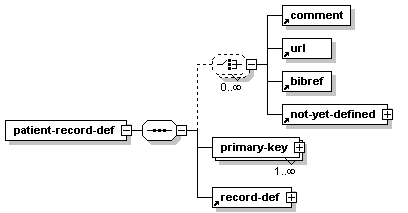

element patient-record-def

diagram
children	comment url bibref not-yet-defined primary-key record-def
used by	elements  plan-library/domain-defs/domain plan-library/library-defs
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element patient-record-def/primary-key

diagram
children	comment url bibref not-yet-defined
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

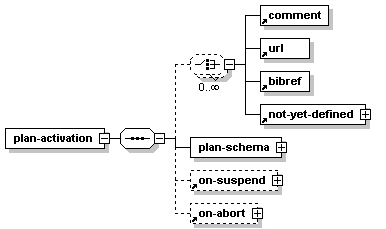

element plan-activation

diagram
children	comment url bibref not-yet-defined plan-schema on-suspend on-abort
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body plan-group/plan/returns single-steps subplans the-single-step if-then-else/then-branch

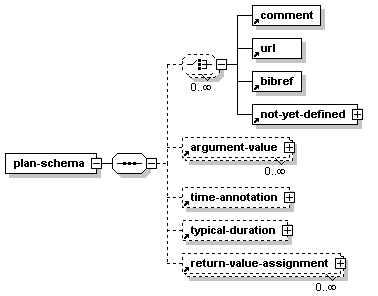

element plan-activation/plan-schema

diagram
children	comment url bibref not-yet-defined argument-value time-annotation typical-duration return-value-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:IDREF   required

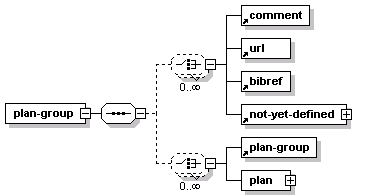

element plan-group

diagram
children	comment url bibref not-yet-defined plan-group plan
used by	elements  plan-group plan-library/plans
attributes	Name   Type   Use   Default   Fixed   Annotation title   xs:string

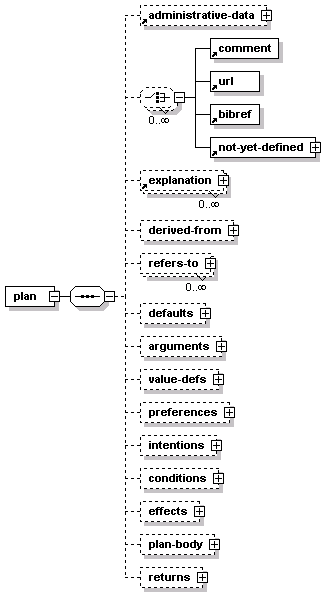

element plan-group/plan

diagram
children	administrative-data comment url bibref not-yet-defined explanation derived-from refers-to defaults arguments value-defs preferences intentions conditions effects plan-body returns
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:ID   required         title   xs:string

element plan-group/plan/derived-from

diagram
children	comment url bibref not-yet-defined
attributes	Name   Type   Use   Default   Fixed   Annotation plan-name   xs:IDREF   required

element plan-group/plan/refers-to

diagram
children	comment url bibref not-yet-defined
attributes	Name   Type   Use   Default   Fixed   Annotation plan-name   xs:IDREF   required         as   xs:NMTOKEN

element plan-group/plan/defaults

diagram
children	comment url bibref not-yet-defined on-suspend on-abort time-annotation typical-duration

element plan-group/plan/arguments

diagram
children	comment url bibref not-yet-defined argument

element plan-group/plan/value-defs

diagram
children	variable-def constant-def iterator-def

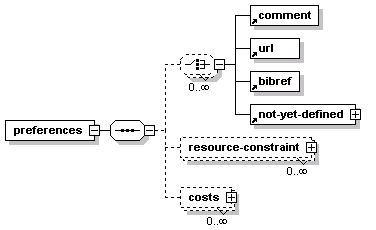

element plan-group/plan/preferences

diagram
children	comment url bibref not-yet-defined resource-constraint costs
attributes	Name   Type   Use   Default   Fixed   Annotation strategy   xs:NMTOKEN            responsible-actor   xs:NMTOKEN

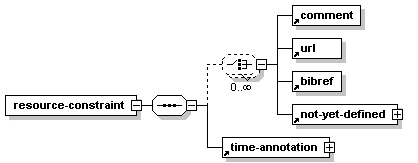

element plan-group/plan/preferences/resource-constraint

diagram
children	comment url bibref not-yet-defined time-annotation
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required         type   xs:NMTOKEN   required

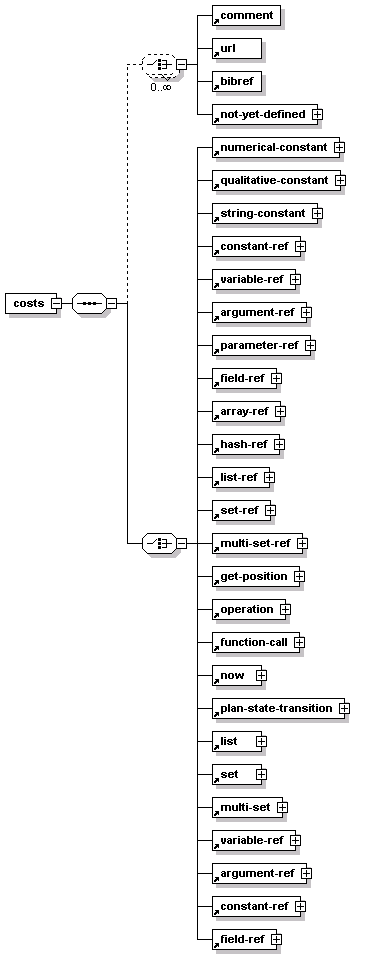

element plan-group/plan/preferences/costs

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition list set multi-set
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            name   xs:NMTOKEN

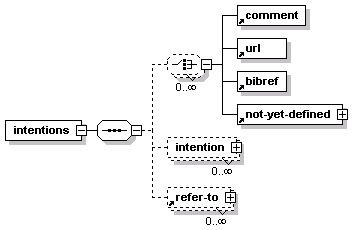

element plan-group/plan/intentions

diagram
children	comment url bibref not-yet-defined intention refer-to

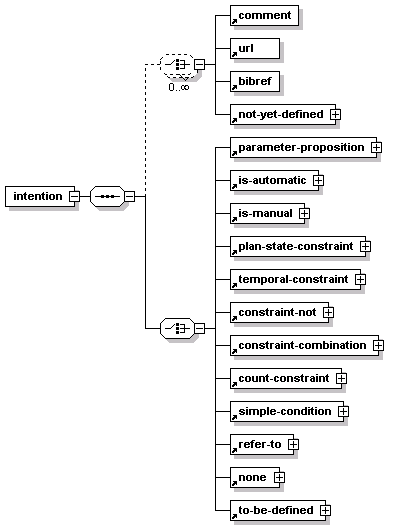

element plan-group/plan/intentions/intention

diagram
children	comment url bibref not-yet-defined parameter-proposition is-automatic is-manual plan-state-constraint temporal-constraint constraint-not constraint-combination count-constraint simple-condition refer-to none to-be-defined
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            type   xs:NMTOKEN   required         verb   xs:NMTOKEN   required         importance   xs:NMTOKEN

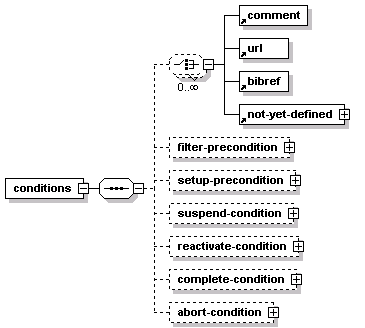

element plan-group/plan/conditions

diagram
children	comment url bibref not-yet-defined filter-precondition setup-precondition suspend-condition reactivate-condition complete-condition abort-condition

element plan-group/plan/conditions/filter-precondition

diagram
children	comment url bibref not-yet-defined explanation parameter-proposition is-automatic is-manual plan-state-constraint temporal-constraint constraint-not constraint-combination count-constraint simple-condition refer-to none to-be-defined
attributes	Name   Type   Use   Default   Fixed   Annotation overridable   xs:NMTOKEN      no      confirmation-required   xs:NMTOKEN      no

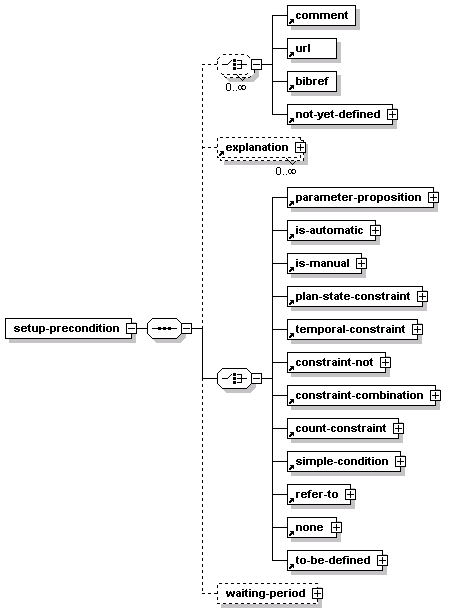

element plan-group/plan/conditions/setup-precondition

diagram
children	comment url bibref not-yet-defined explanation parameter-proposition is-automatic is-manual plan-state-constraint temporal-constraint constraint-not constraint-combination count-constraint simple-condition refer-to none to-be-defined waiting-period
attributes	Name   Type   Use   Default   Fixed   Annotation overridable   xs:NMTOKEN      no      confirmation-required   xs:NMTOKEN      no

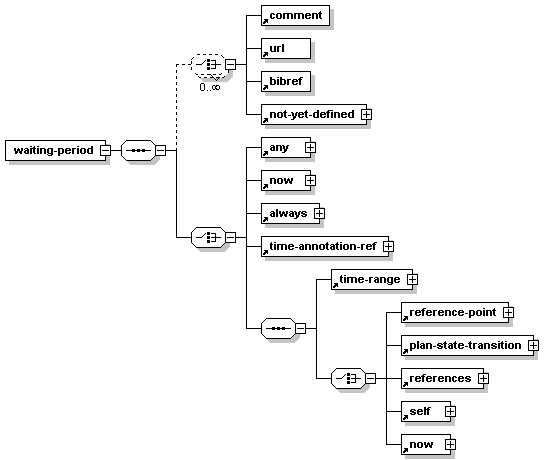

element plan-group/plan/conditions/setup-precondition/waiting-period

diagram
children	comment url bibref not-yet-defined any now always time-annotation-ref time-range reference-point plan-state-transition references self

element plan-group/plan/conditions/suspend-condition

diagram
children	comment url bibref not-yet-defined explanation parameter-proposition is-automatic is-manual plan-state-constraint temporal-constraint constraint-not constraint-combination count-constraint simple-condition refer-to none to-be-defined
attributes	Name   Type   Use   Default   Fixed   Annotation overridable   xs:NMTOKEN      no      confirmation-required   xs:NMTOKEN      no

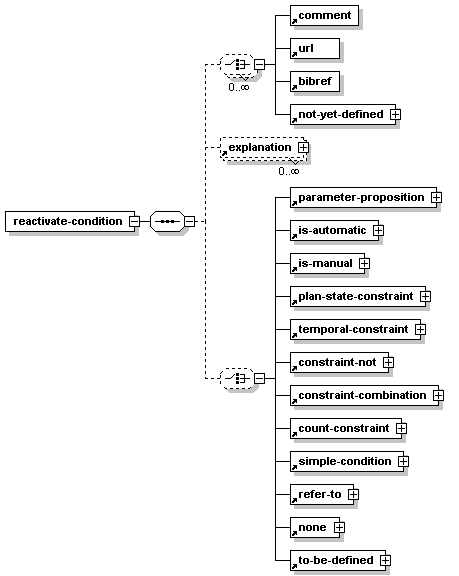

element plan-group/plan/conditions/reactivate-condition

diagram
children	comment url bibref not-yet-defined explanation parameter-proposition is-automatic is-manual plan-state-constraint temporal-constraint constraint-not constraint-combination count-constraint simple-condition refer-to none to-be-defined
attributes	Name   Type   Use   Default   Fixed   Annotation overridable   xs:NMTOKEN      no      confirmation-required   xs:NMTOKEN      no

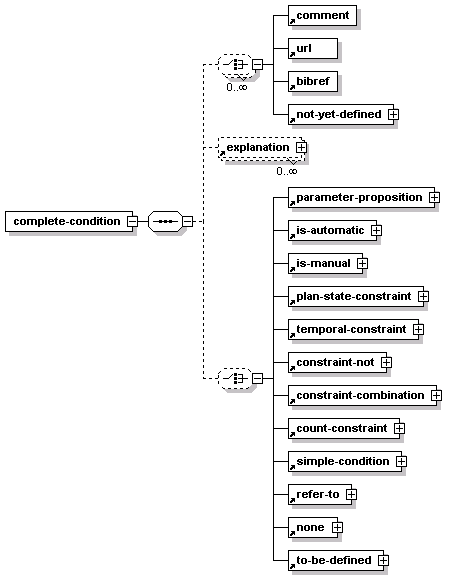

element plan-group/plan/conditions/complete-condition

diagram
children	comment url bibref not-yet-defined explanation parameter-proposition is-automatic is-manual plan-state-constraint temporal-constraint constraint-not constraint-combination count-constraint simple-condition refer-to none to-be-defined
attributes	Name   Type   Use   Default   Fixed   Annotation overridable   xs:NMTOKEN      no      confirmation-required   xs:NMTOKEN      no

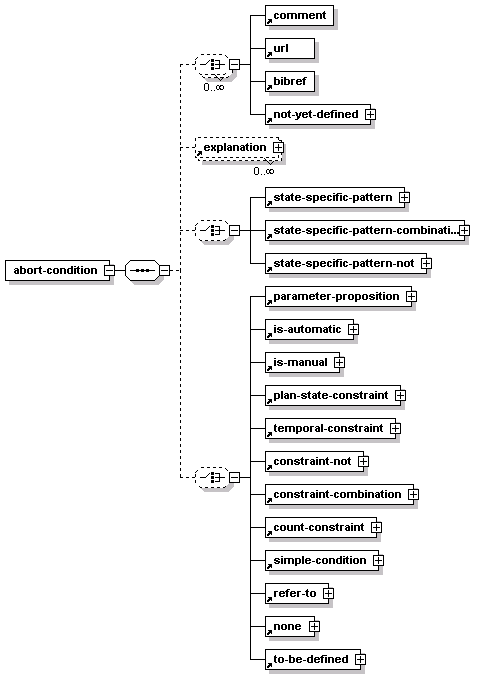

element plan-group/plan/conditions/abort-condition

diagram
children	comment url bibref not-yet-defined explanation state-specific-pattern state-specific-pattern-combination state-specific-pattern-not parameter-proposition is-automatic is-manual plan-state-constraint temporal-constraint constraint-not constraint-combination count-constraint simple-condition refer-to none to-be-defined
attributes	Name   Type   Use   Default   Fixed   Annotation overridable   xs:NMTOKEN      no      confirmation-required   xs:NMTOKEN      no

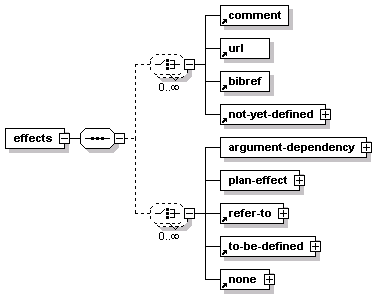

element plan-group/plan/effects

diagram
children	comment url bibref not-yet-defined argument-dependency plan-effect refer-to to-be-defined none

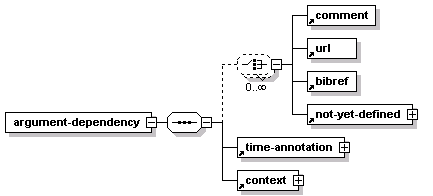

element plan-group/plan/effects/argument-dependency

diagram
children	comment url bibref not-yet-defined time-annotation context
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            argument-name   xs:NMTOKEN   required         relationship   xs:NMTOKEN   required         likelihood   xs:NMTOKEN   required         parameter   xs:NMTOKEN   required

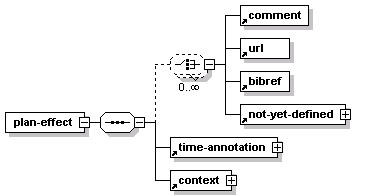

element plan-group/plan/effects/plan-effect

diagram
children	comment url bibref not-yet-defined time-annotation context
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            direction   xs:NMTOKEN            likelihood   xs:NMTOKEN   required         parameter   xs:NMTOKEN   required

element plan-group/plan/plan-body

diagram

children

comment url bibref not-yet-defined subplans cyclical-plan for-each-plan iterative-plan plan-activation variable-assignment set-context ask insert-before-iterator insert-after-iterator insert-before-position insert-after-position put-first put-last remove-element remove-at-iterator remove-at-position go-to-next go-to-previous reset-iterator set-iterator if-then-else refer-to to-be-defined user-performed

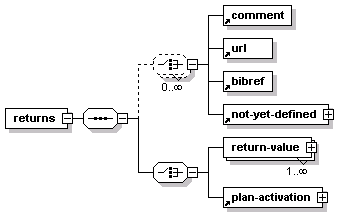

element plan-group/plan/returns

diagram
children	comment url bibref not-yet-defined return-value plan-activation

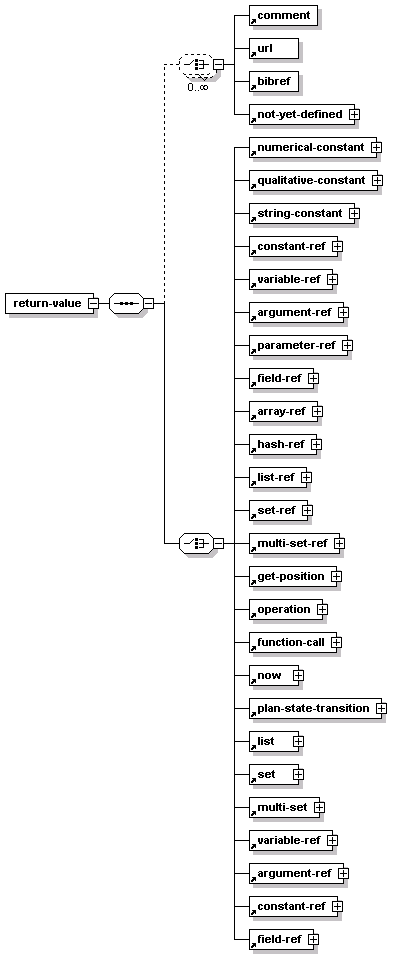

element plan-group/plan/returns/return-value

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition list set multi-set
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            name   xs:NMTOKEN

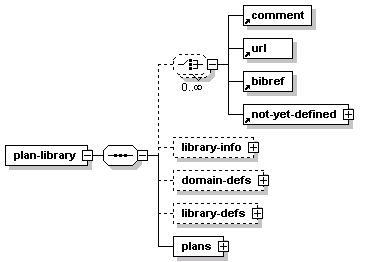

element plan-library

diagram
children	comment url bibref not-yet-defined library-info domain-defs library-defs plans

element plan-library/library-info

diagram
children	administrative-data
attributes	Name   Type   Use   Default   Fixed   Annotation title   xs:string   required         version   xs:string

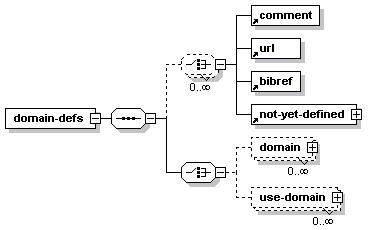

element plan-library/domain-defs

diagram
children	comment url bibref not-yet-defined domain use-domain

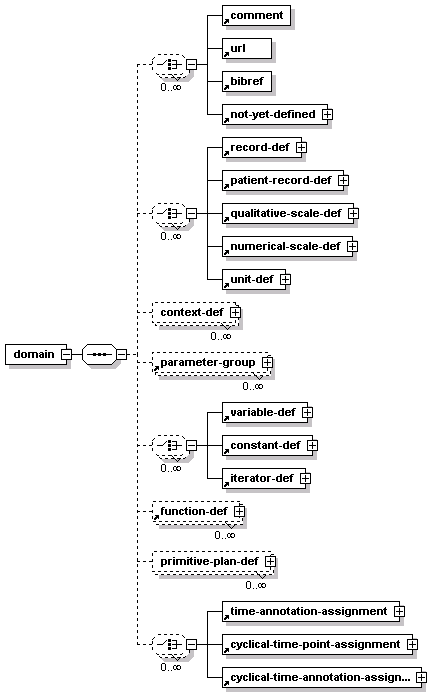

element plan-library/domain-defs/domain

diagram
children	comment url bibref not-yet-defined record-def patient-record-def qualitative-scale-def numerical-scale-def unit-def context-def parameter-group variable-def constant-def iterator-def function-def primitive-plan-def time-annotation-assignment cyclical-time-point-assignment cyclical-time-annotation-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:ID   required

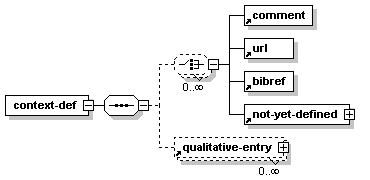

element plan-library/domain-defs/domain/context-def

diagram
children	comment url bibref not-yet-defined qualitative-entry
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element plan-library/domain-defs/domain/primitive-plan-def

diagram
children	comment url bibref not-yet-defined argument
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:ID   required         return-type   xs:NMTOKEN            method-name   xs:NMTOKEN   required         class-name   xs:NMTOKEN   required

element plan-library/domain-defs/use-domain

diagram
children	comment url bibref not-yet-defined
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:IDREF   required

element plan-library/library-defs

diagram
children	comment url bibref not-yet-defined record-def patient-record-def qualitative-scale-def numerical-scale-def unit-def variable-def constant-def iterator-def function-def time-annotation-assignment cyclical-time-point-assignment cyclical-time-annotation-assignment

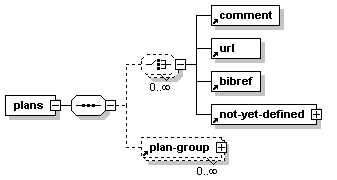

element plan-library/plans

diagram
children	comment url bibref not-yet-defined plan-group

element plan-pointer

diagram
children	comment url bibref not-yet-defined static-plan-pointer
used by	elements  plan-state-constraint plan-state-transition
attributes	Name   Type   Use   Default   Fixed   Annotation instance-type   xs:NMTOKEN      first      instance-number   xs:NMTOKEN      1

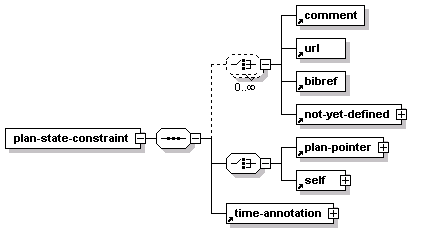

element plan-state-constraint

diagram
children	comment url bibref not-yet-defined plan-pointer self time-annotation
used by	elements  plan-group/plan/conditions/abort-condition plan-group/plan/conditions/complete-condition constraint-combination constraint-not count-constraint plan-group/plan/conditions/filter-precondition plan-group/plan/intentions/intention plan-group/plan/conditions/reactivate-condition plan-group/plan/conditions/setup-precondition state-specific-pattern plan-group/plan/conditions/suspend-condition temporal-constraint temporal-constraint cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            state   xs:NMTOKEN   required         importance   xs:NMTOKEN

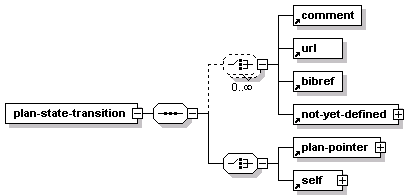

element plan-state-transition

diagram
children	comment url bibref not-yet-defined plan-pointer self
used by	elements  argument-value bound subplans/wait-for/cardinality plan-group/plan/preferences/costs count-constraint earliest element reference-point/epsilon explanation set-of-cyclical-time-points/frequency has-occurred array-ref/index scalar-def/initial-value is-within-range latest comparison/left-hand-side array-def/dimension-def/length list logical-dependency-def lower-bound maximum minimum multi-set set-of-cyclical-time-points/offset operation position reference-point references plan-group/plan/returns/return-value comparison/right-hand-side set the-expression time-annotation ask/time-out time-point typical-duration upper-bound parameter-proposition/value-description variable-assignment plan-group/plan/conditions/setup-precondition/waiting-period
attributes	Name   Type   Use   Default   Fixed   Annotation state   xs:NMTOKEN   required         direction   xs:NMTOKEN      enter      instance-type   xs:NMTOKEN   required         instance-number   xs:NMTOKEN      1

element position

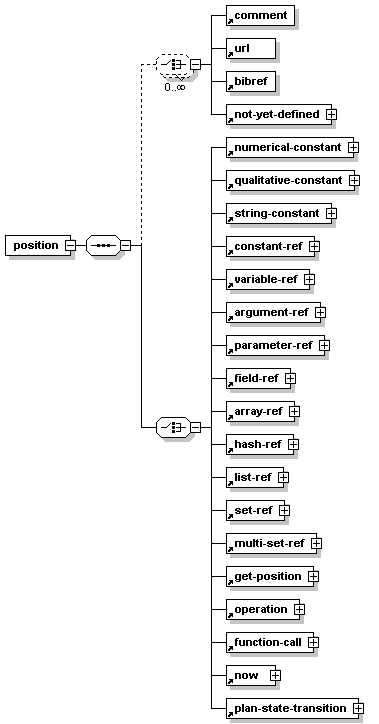

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  insert-after-position insert-before-position remove-at-position

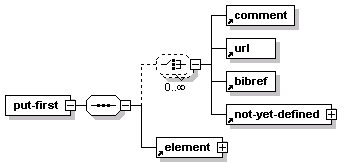

element put-first

diagram
children	comment url bibref not-yet-defined element
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation list   xs:NMTOKEN   required

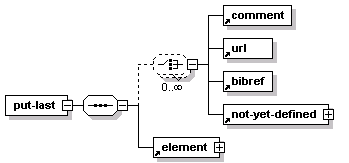

element put-last

diagram
children	comment url bibref not-yet-defined element
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation list   xs:NMTOKEN   required

element qualitative-constant

diagram
children	comment url bibref not-yet-defined
used by	elements  argument-value bound calculation-def subplans/wait-for/cardinality constant-operation plan-group/plan/preferences/costs count-constraint qualitative-parameter-def/limits/cross-over-time earliest element reference-point/epsilon explanation set-of-cyclical-time-points/frequency array-ref/index scalar-def/initial-value interval is-within-range latest comparison/left-hand-side array-def/dimension-def/length time-to-alarm-def/limit list logical-dependency-def lower-bound raw-data-def/maximal-decrease raw-data-def/maximal-increase maximum raw-data-def/maximum-value minimum spread-def/minimum-of-valid-points raw-data-def/minimum-value multi-set set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value comparison/right-hand-side sampling-frequency set spread-def/step-width the-constant-expression the-expression ask/time-out time-point spread-def/time-window-size raw-data-def/trust-period typical-duration upper-bound parameter-proposition/value-description variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation value   xs:NMTOKEN   required

element qualitative-entry

diagram
children	comment url bibref not-yet-defined
used by	elements  plan-library/domain-defs/domain/context-def qualitative-scale-def
attributes	Name   Type   Use   Default   Fixed   Annotation entry   xs:NMTOKEN   required

element qualitative-parameter-def

diagram
children	comment url bibref not-yet-defined limits parameter-ref raw-data-def spread-def slope-def standard-deviation-def end-point-def center-def time-to-alarm-def change-def average-def qualitative-parameter-def calculation-def logical-combination-def logical-dependency-def boolean-def
used by	elements  average-def calculation-def center-def change-def end-point-def logical-dependency-def parameter-group/parameter-def qualitative-parameter-def slope-def spread-def standard-deviation-def time-to-alarm-def
attributes	Name   Type   Use   Default   Fixed   Annotation use-as-context   xs:NMTOKEN      no

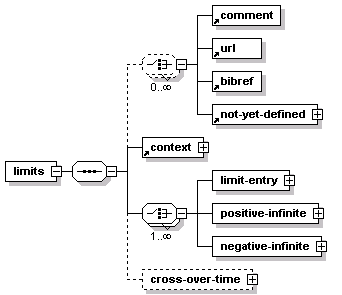

element qualitative-parameter-def/limits

diagram
children	comment url bibref not-yet-defined context limit-entry positive-infinite negative-infinite cross-over-time
attributes	Name   Type   Use   Default   Fixed   Annotation unit   xs:string            scale   xs:string

element qualitative-parameter-def/limits/limit-entry

diagram
children	comment url bibref not-yet-defined
attributes	Name   Type   Use   Default   Fixed   Annotation value   xs:NMTOKEN   required         include-limit-value   xs:NMTOKEN      yes

element qualitative-parameter-def/limits/positive-infinite

diagram
children	comment url bibref not-yet-defined

element qualitative-parameter-def/limits/negative-infinite

diagram
children	comment url bibref not-yet-defined

element qualitative-parameter-def/limits/cross-over-time

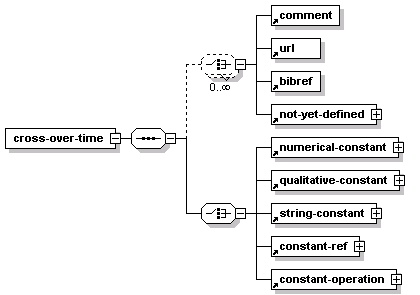

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref constant-operation

element qualitative-scale-def

diagram
children	comment url bibref not-yet-defined qualitative-entry secondary-qualitative-entry
used by	elements  plan-library/domain-defs/domain plan-library/library-defs
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

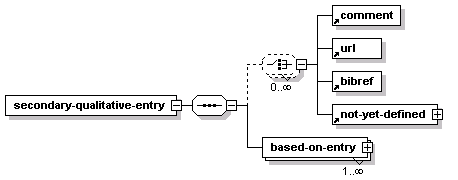

element qualitative-scale-def/secondary-qualitative-entry

diagram
children	comment url bibref not-yet-defined based-on-entry
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element qualitative-scale-def/secondary-qualitative-entry/based-on-entry

diagram
children	comment url bibref not-yet-defined
attributes	Name   Type   Use   Default   Fixed   Annotation entry   xs:NMTOKEN   required

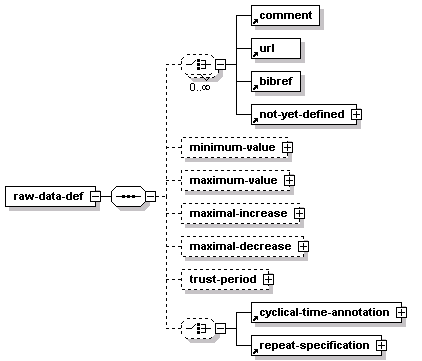

element raw-data-def

diagram
children	comment url bibref not-yet-defined minimum-value maximum-value maximal-increase maximal-decrease trust-period cyclical-time-annotation repeat-specification
used by	elements  average-def calculation-def center-def change-def end-point-def logical-combination-def logical-dependency-def parameter-group/parameter-def qualitative-parameter-def slope-def spread-def standard-deviation-def time-to-alarm-def
attributes	Name   Type   Use   Default   Fixed   Annotation unit   xs:string            scale   xs:string            mode   xs:NMTOKEN   required         channel-name   xs:string            user-text   xs:string            use-as-context   xs:NMTOKEN      no

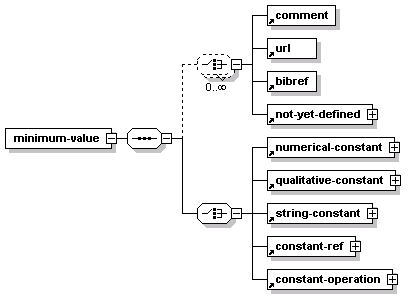

element raw-data-def/minimum-value

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref constant-operation

element raw-data-def/maximum-value

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref constant-operation

element raw-data-def/maximal-increase

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref constant-operation

element raw-data-def/maximal-decrease

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref constant-operation

element raw-data-def/trust-period

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref constant-operation

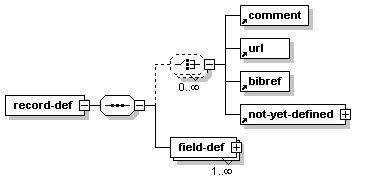

element record-def

diagram
children	comment url bibref not-yet-defined field-def
used by	elements  array-def constant-def plan-library/domain-defs/domain record-def/field-def hash-def plan-library/library-defs list-def multi-set-def patient-record-def set-def variable-def
attributes	Name   Type   Use   Default   Fixed   Annotation class   xs:NMTOKEN

element record-def/field-def

diagram
children	record-def array-def hash-def list-def set-def multi-set-def scalar-def
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element refer-to

diagram
children	comment url bibref not-yet-defined
used by	elements  plan-group/plan/conditions/abort-condition subplans/abort-if abort-if-group abort-if-not plan-group/plan/conditions/complete-condition constraint-combination constraint-not count-constraint cyclical-plan/cyclical-plan-body do-after do-before plan-group/plan/effects plan-group/plan/conditions/filter-precondition plan-group/plan/intentions/intention plan-group/plan/intentions plan-group/plan/plan-body plan-group/plan/conditions/reactivate-condition plan-group/plan/conditions/setup-precondition state-specific-pattern subplans plan-group/plan/conditions/suspend-condition temporal-constraint temporal-constraint cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition subplans/wait-for wait-for-group wait-for-not
attributes	Name   Type   Use   Default   Fixed   Annotation plan-name   xs:NMTOKEN   required         label   xs:NMTOKEN   required         importance   xs:NMTOKEN

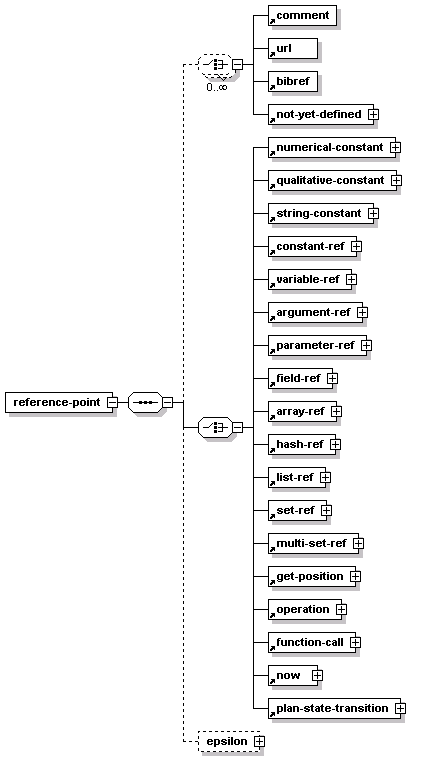

element reference-point

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition epsilon
used by	elements  references time-annotation plan-group/plan/conditions/setup-precondition/waiting-period

element reference-point/epsilon

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition

element references

diagram
children	comment url bibref not-yet-defined reference-point plan-state-transition references self now
used by	elements  references time-annotation plan-group/plan/conditions/setup-precondition/waiting-period

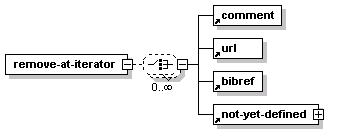

element remove-at-iterator

diagram
children	comment url bibref not-yet-defined
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation iterator   xs:NMTOKEN   required

element remove-at-position

diagram
children	comment url bibref not-yet-defined position
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation list   xs:NMTOKEN   required

element remove-element

diagram
children	comment url bibref not-yet-defined element
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation list   xs:NMTOKEN   required

element repeat-specification

diagram
children	comment url bibref not-yet-defined retry-delay duration
used by	elements  cyclical-plan raw-data-def

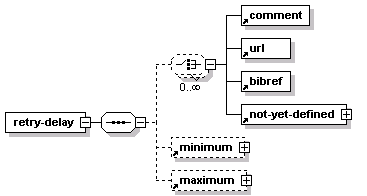

element repeat-specification/retry-delay

diagram
children	comment url bibref not-yet-defined minimum maximum
attributes	Name   Type   Use   Default   Fixed   Annotation include-limit-value   xs:NMTOKEN      yes

element reset-iterator

diagram
children	comment url bibref not-yet-defined
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation iterator   xs:NMTOKEN   required

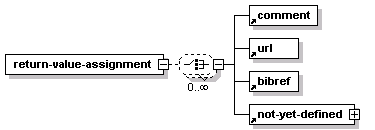

element return-value-assignment

diagram
children	comment url bibref not-yet-defined
used by	elements  for-each-plan/do-for-each function-call plan-activation/plan-schema
attributes	Name   Type   Use   Default   Fixed   Annotation variable-name   xs:NMTOKEN   required         return-value-name   xs:NMTOKEN

element sampling-frequency

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref constant-operation
used by	elements  parameter-group/parameter-def parameter-proposition

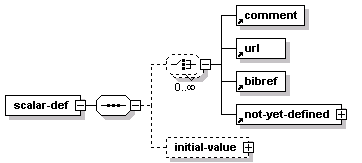

element scalar-def

diagram
children	comment url bibref not-yet-defined initial-value
used by	elements  array-def constant-def record-def/field-def hash-def list-def multi-set-def set-def variable-def
attributes	Name   Type   Use   Default   Fixed   Annotation type   xs:NMTOKEN   required         rounding   xs:NMTOKEN      nearest      precision   xs:NMTOKEN            precision-unit   xs:string            default-unit   xs:string            default-scale   xs:string            cascade   xs:NMTOKEN

element scalar-def/initial-value

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition

element self

diagram
children	comment url bibref not-yet-defined
used by	elements  plan-state-constraint plan-state-transition references time-annotation plan-group/plan/conditions/setup-precondition/waiting-period

element set

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  plan-group/plan/preferences/costs is-member-of iterator-def plan-group/plan/returns/return-value variable-assignment

element set-context

diagram
children	comment url bibref not-yet-defined
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            name   xs:NMTOKEN   required         value   xs:NMTOKEN

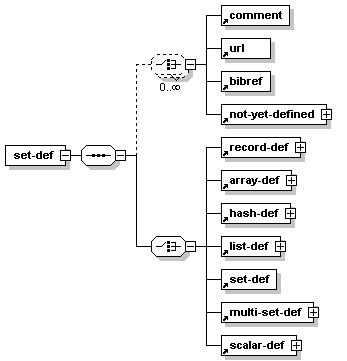

element set-def

diagram
children	comment url bibref not-yet-defined record-def array-def hash-def list-def set-def multi-set-def scalar-def
used by	elements  array-def constant-def record-def/field-def hash-def list-def multi-set-def set-def variable-def

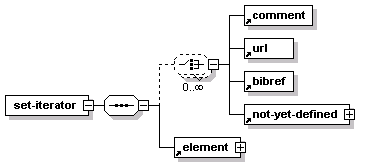

element set-iterator

diagram
children	comment url bibref not-yet-defined element
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation iterator   xs:NMTOKEN   required         direction   xs:NMTOKEN      forward

element set-of-cyclical-time-points

diagram
children	comment url bibref not-yet-defined time-point offset frequency
used by	elements  cyclical-time-annotation cyclical-time-point-assignment

element set-of-cyclical-time-points/offset

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition

element set-of-cyclical-time-points/frequency

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition

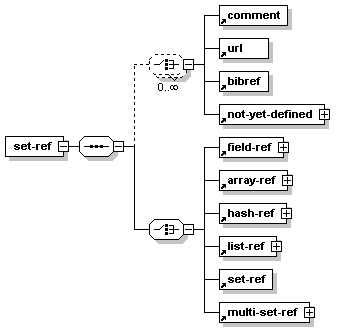

element set-ref

diagram
children	comment url bibref not-yet-defined field-ref array-ref hash-ref list-ref set-ref multi-set-ref
used by	elements  argument-value array-ref bound subplans/wait-for/cardinality plan-group/plan/preferences/costs count-constraint earliest element reference-point/epsilon explanation field-ref set-of-cyclical-time-points/frequency hash-ref array-ref/index scalar-def/initial-value is-within-range latest comparison/left-hand-side array-def/dimension-def/length list list-ref logical-dependency-def lower-bound maximum minimum multi-set multi-set-ref set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value comparison/right-hand-side set set-ref the-expression ask/time-out time-point typical-duration upper-bound parameter-proposition/value-description variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation iterator   xs:NMTOKEN   required         iterator-change   xs:NMTOKEN   required

element simple-condition

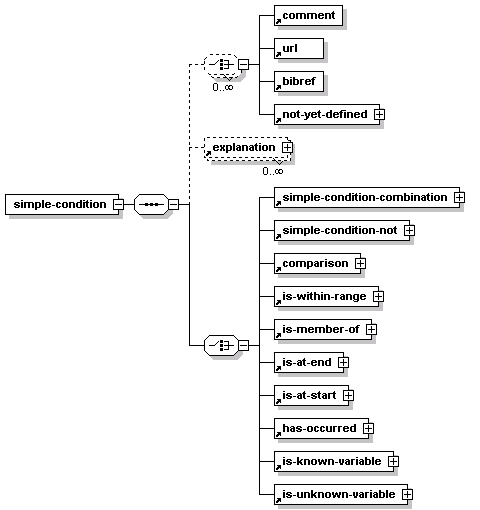

diagram
children	comment url bibref not-yet-defined explanation simple-condition-combination simple-condition-not comparison is-within-range is-member-of is-at-end is-at-start has-occurred is-known-variable is-unknown-variable
used by	elements  plan-group/plan/conditions/abort-condition plan-group/plan/conditions/complete-condition constraint-combination constraint-not count-constraint plan-group/plan/conditions/filter-precondition if-then-else plan-group/plan/intentions/intention plan-group/plan/conditions/reactivate-condition plan-group/plan/conditions/setup-precondition state-specific-pattern plan-group/plan/conditions/suspend-condition temporal-constraint temporal-constraint cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            importance   xs:NMTOKEN

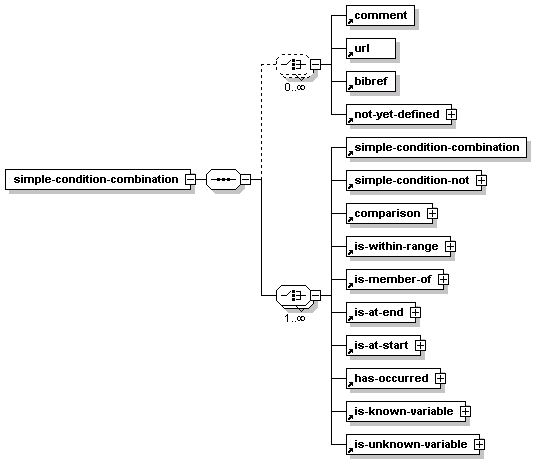

element simple-condition-combination

diagram
children	comment url bibref not-yet-defined simple-condition-combination simple-condition-not comparison is-within-range is-member-of is-at-end is-at-start has-occurred is-known-variable is-unknown-variable
used by	elements  simple-condition simple-condition-combination simple-condition-not termination-condition
attributes	Name   Type   Use   Default   Fixed   Annotation type   xs:NMTOKEN   required

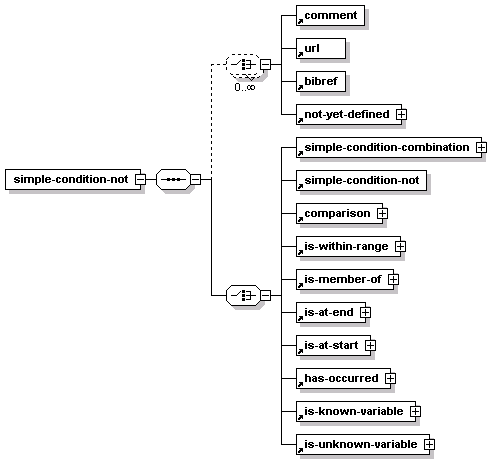

element simple-condition-not

diagram
children	comment url bibref not-yet-defined simple-condition-combination simple-condition-not comparison is-within-range is-member-of is-at-end is-at-start has-occurred is-known-variable is-unknown-variable
used by	elements  simple-condition simple-condition-combination simple-condition-not termination-condition

element single-steps

diagram
children	comment url bibref not-yet-defined plan-activation variable-assignment set-context ask insert-before-iterator insert-after-iterator insert-before-position insert-after-position put-first put-last remove-element remove-at-iterator remove-at-position go-to-next go-to-previous reset-iterator set-iterator if-then-else

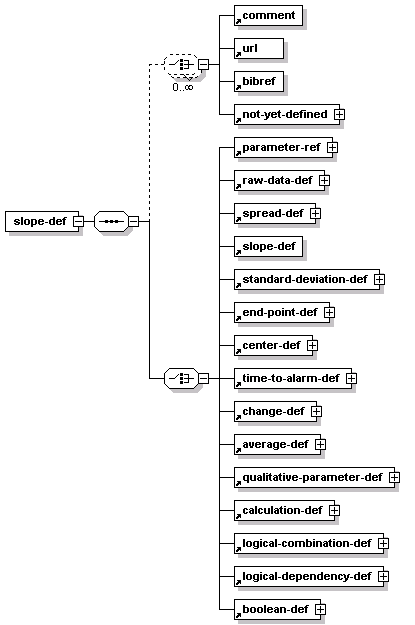

element slope-def

diagram
children	comment url bibref not-yet-defined parameter-ref raw-data-def spread-def slope-def standard-deviation-def end-point-def center-def time-to-alarm-def change-def average-def qualitative-parameter-def calculation-def logical-combination-def logical-dependency-def boolean-def
used by	elements  average-def calculation-def center-def change-def end-point-def logical-dependency-def parameter-group/parameter-def qualitative-parameter-def slope-def spread-def standard-deviation-def time-to-alarm-def

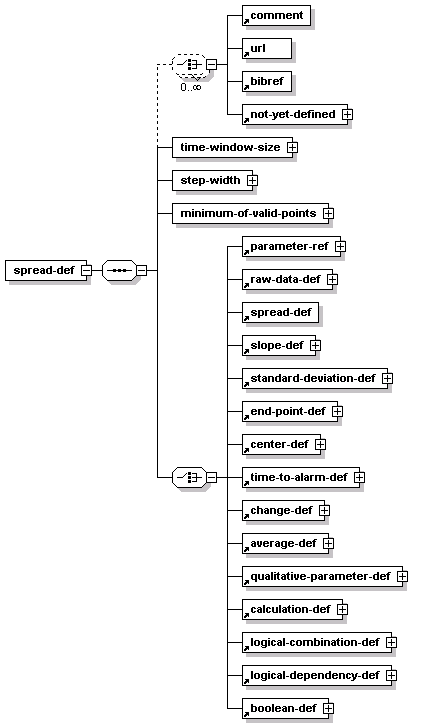

element spread-def

diagram
children	comment url bibref not-yet-defined time-window-size step-width minimum-of-valid-points parameter-ref raw-data-def spread-def slope-def standard-deviation-def end-point-def center-def time-to-alarm-def change-def average-def qualitative-parameter-def calculation-def logical-combination-def logical-dependency-def boolean-def
used by	elements  average-def calculation-def center-def change-def end-point-def logical-dependency-def parameter-group/parameter-def qualitative-parameter-def slope-def spread-def standard-deviation-def time-to-alarm-def

element spread-def/time-window-size

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref constant-operation

element spread-def/step-width

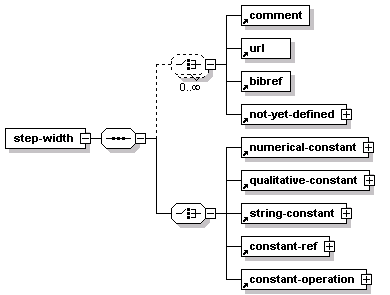

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref constant-operation

element spread-def/minimum-of-valid-points

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref constant-operation

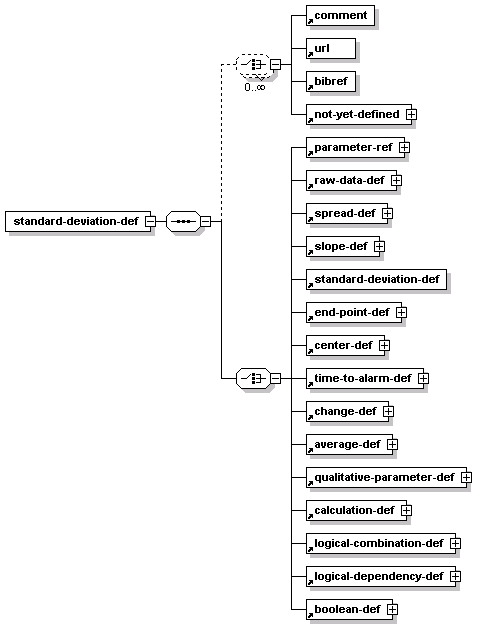

element standard-deviation-def

diagram
children	comment url bibref not-yet-defined parameter-ref raw-data-def spread-def slope-def standard-deviation-def end-point-def center-def time-to-alarm-def change-def average-def qualitative-parameter-def calculation-def logical-combination-def logical-dependency-def boolean-def
used by	elements  average-def calculation-def center-def change-def end-point-def logical-dependency-def parameter-group/parameter-def qualitative-parameter-def slope-def spread-def standard-deviation-def time-to-alarm-def

element state-specific-pattern

diagram
children	comment url bibref not-yet-defined parameter-proposition is-automatic is-manual plan-state-constraint temporal-constraint constraint-not constraint-combination count-constraint simple-condition refer-to none to-be-defined
used by	elements  plan-group/plan/conditions/abort-condition state-specific-pattern-combination state-specific-pattern-not
attributes	Name   Type   Use   Default   Fixed   Annotation aborted-from   xs:NMTOKEN   required

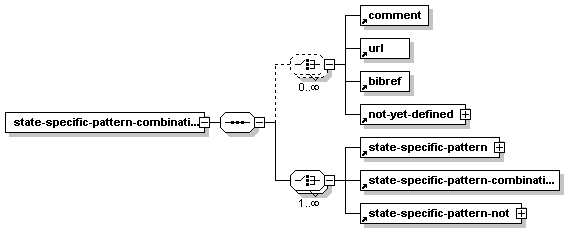

element state-specific-pattern-combination

diagram
children	comment url bibref not-yet-defined state-specific-pattern state-specific-pattern-combination state-specific-pattern-not
used by	elements  plan-group/plan/conditions/abort-condition state-specific-pattern-combination state-specific-pattern-not
attributes	Name   Type   Use   Default   Fixed   Annotation aborted-from   xs:NMTOKEN   required

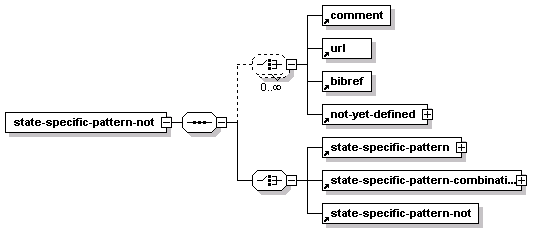

element state-specific-pattern-not

diagram
children	comment url bibref not-yet-defined state-specific-pattern state-specific-pattern-combination state-specific-pattern-not
used by	elements  plan-group/plan/conditions/abort-condition state-specific-pattern-combination state-specific-pattern-not

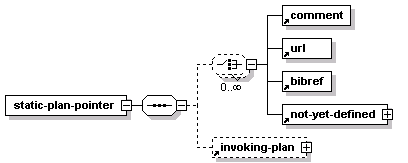

element static-plan-pointer

diagram
children	comment url bibref not-yet-defined invoking-plan
used by	elements  abort-if-item plan-pointer subplans/wait-for wait-for-group wait-for-not
attributes	Name   Type   Use   Default   Fixed   Annotation plan-name   xs:IDREF   required         label   xs:NMTOKEN

element string-constant

diagram
children	comment url bibref not-yet-defined
used by	elements  argument-value bound calculation-def subplans/wait-for/cardinality constant-operation plan-group/plan/preferences/costs count-constraint qualitative-parameter-def/limits/cross-over-time earliest element reference-point/epsilon explanation set-of-cyclical-time-points/frequency array-ref/index scalar-def/initial-value interval is-within-range latest comparison/left-hand-side array-def/dimension-def/length time-to-alarm-def/limit list logical-dependency-def lower-bound raw-data-def/maximal-decrease raw-data-def/maximal-increase maximum raw-data-def/maximum-value minimum spread-def/minimum-of-valid-points raw-data-def/minimum-value multi-set set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value comparison/right-hand-side sampling-frequency set spread-def/step-width the-constant-expression the-expression ask/time-out time-point spread-def/time-window-size raw-data-def/trust-period typical-duration upper-bound parameter-proposition/value-description variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation value   xs:string   required

element subplans

diagram
children	comment url bibref not-yet-defined wait-for abort-if subplans cyclical-plan for-each-plan iterative-plan plan-activation variable-assignment set-context ask insert-before-iterator insert-after-iterator insert-before-position insert-after-position put-first put-last remove-element remove-at-iterator remove-at-position go-to-next go-to-previous reset-iterator set-iterator if-then-else refer-to to-be-defined user-performed
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before plan-group/plan/plan-body subplans
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            type   xs:NMTOKEN   required         wait-for-optional-subplans   xs:NMTOKEN      no      retry-aborted-subplans   xs:NMTOKEN      no

element subplans/wait-for

diagram
children	comment url bibref not-yet-defined static-plan-pointer wait-for-group wait-for-not refer-to all one cardinality to-be-defined none

element subplans/wait-for/all

diagram
children	comment url bibref not-yet-defined

element subplans/wait-for/one

diagram
children	comment url bibref not-yet-defined

element subplans/wait-for/cardinality

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition

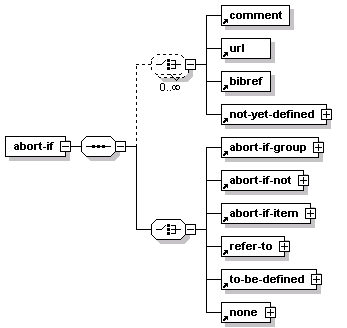

element subplans/abort-if

diagram
children	comment url bibref not-yet-defined abort-if-group abort-if-not abort-if-item refer-to to-be-defined none

element temporal-constraint

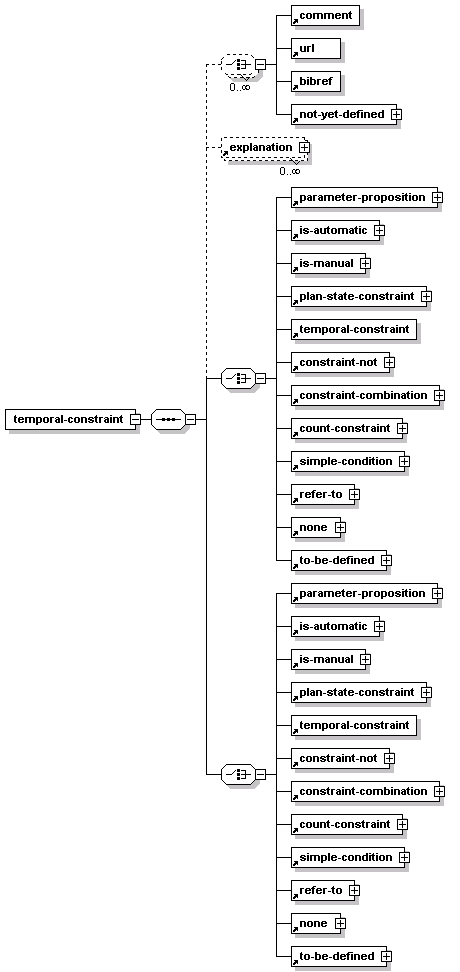

diagram
children	comment url bibref not-yet-defined explanation parameter-proposition is-automatic is-manual plan-state-constraint temporal-constraint constraint-not constraint-combination count-constraint simple-condition refer-to none to-be-defined
used by	elements  plan-group/plan/conditions/abort-condition plan-group/plan/conditions/complete-condition constraint-combination constraint-not count-constraint plan-group/plan/conditions/filter-precondition plan-group/plan/intentions/intention plan-group/plan/conditions/reactivate-condition plan-group/plan/conditions/setup-precondition state-specific-pattern plan-group/plan/conditions/suspend-condition temporal-constraint temporal-constraint cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            type   xs:NMTOKEN   required         importance   xs:NMTOKEN

element termination-condition

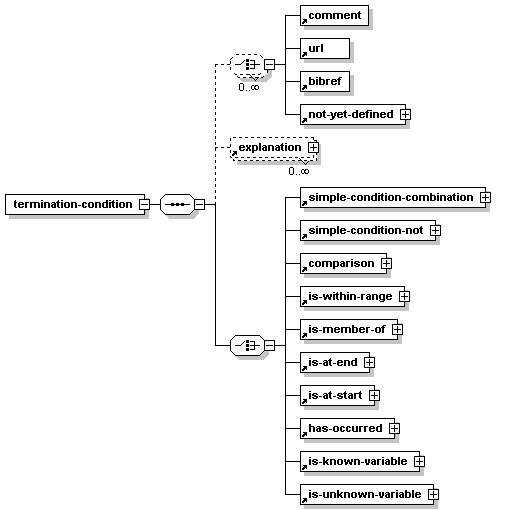

diagram
children	comment url bibref not-yet-defined explanation simple-condition-combination simple-condition-not comparison is-within-range is-member-of is-at-end is-at-start has-occurred is-known-variable is-unknown-variable
used by	elements  for-each-plan iterative-plan
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            importance   xs:NMTOKEN

element the-constant-expression

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref constant-operation

element the-expression

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition

element the-single-step

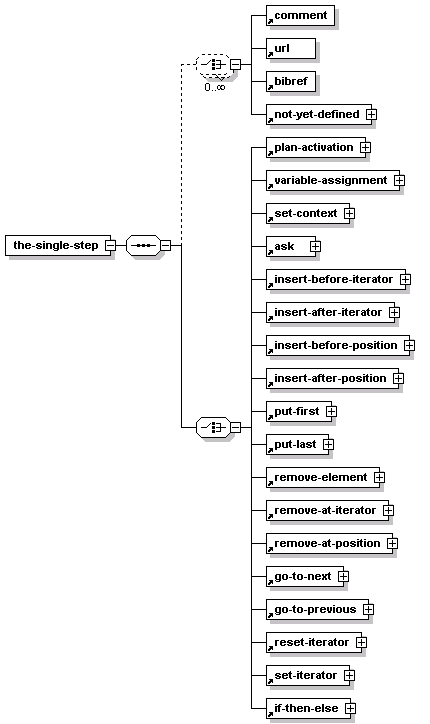

diagram
children	comment url bibref not-yet-defined plan-activation variable-assignment set-context ask insert-before-iterator insert-after-iterator insert-before-position insert-after-position put-first put-last remove-element remove-at-iterator remove-at-position go-to-next go-to-previous reset-iterator set-iterator if-then-else

element time-annotation

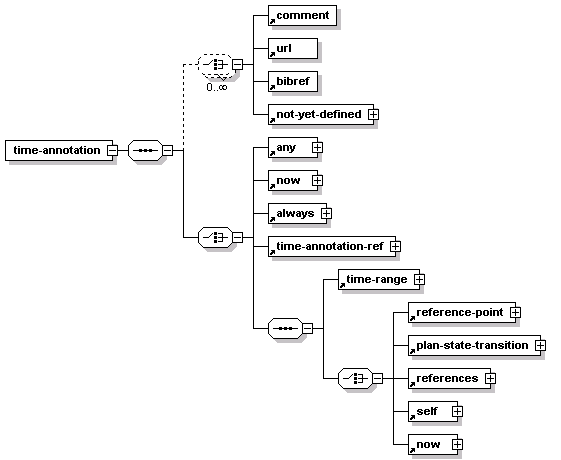

diagram
children	comment url bibref not-yet-defined any now always time-annotation-ref time-range reference-point plan-state-transition references self
used by	elements  plan-group/plan/effects/argument-dependency plan-group/plan/defaults for-each-plan/do-for-each parameter-proposition plan-group/plan/effects/plan-effect plan-activation/plan-schema plan-state-constraint plan-group/plan/preferences/resource-constraint

element time-annotation-assignment

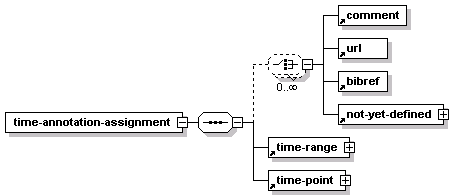

diagram
children	comment url bibref not-yet-defined time-range time-point
used by	elements  plan-library/domain-defs/domain plan-library/library-defs
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element time-annotation-ref

diagram
children	comment url bibref not-yet-defined
used by	elements  time-annotation plan-group/plan/conditions/setup-precondition/waiting-period
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element time-point

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  set-of-cyclical-time-points time-annotation-assignment

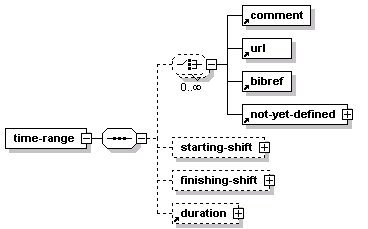

element time-range

diagram
children	comment url bibref not-yet-defined starting-shift finishing-shift duration
used by	elements  cyclical-time-annotation time-annotation time-annotation-assignment plan-group/plan/conditions/setup-precondition/waiting-period

element time-range/starting-shift

diagram
children	comment url bibref not-yet-defined earliest latest
attributes	Name   Type   Use   Default   Fixed   Annotation include-limit-value   xs:NMTOKEN      yes

element time-range/finishing-shift

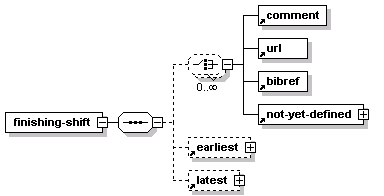

diagram
children	comment url bibref not-yet-defined earliest latest
attributes	Name   Type   Use   Default   Fixed   Annotation include-limit-value   xs:NMTOKEN      yes

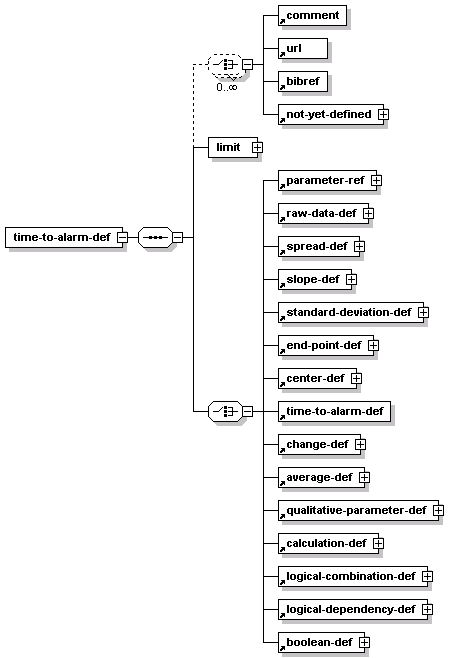

element time-to-alarm-def

diagram
children	comment url bibref not-yet-defined limit parameter-ref raw-data-def spread-def slope-def standard-deviation-def end-point-def center-def time-to-alarm-def change-def average-def qualitative-parameter-def calculation-def logical-combination-def logical-dependency-def boolean-def
used by	elements  average-def calculation-def center-def change-def end-point-def logical-dependency-def parameter-group/parameter-def qualitative-parameter-def slope-def spread-def standard-deviation-def time-to-alarm-def

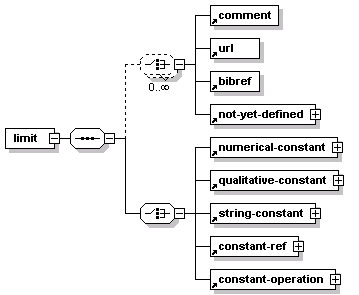

element time-to-alarm-def/limit

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref constant-operation

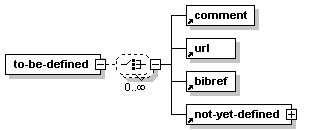

element to-be-defined

diagram
children	comment url bibref not-yet-defined
used by	elements  plan-group/plan/conditions/abort-condition subplans/abort-if plan-group/plan/conditions/complete-condition constraint-combination constraint-not count-constraint cyclical-plan/cyclical-plan-body do-after do-before plan-group/plan/effects plan-group/plan/conditions/filter-precondition plan-group/plan/intentions/intention plan-group/plan/plan-body plan-group/plan/conditions/reactivate-condition plan-group/plan/conditions/setup-precondition state-specific-pattern subplans plan-group/plan/conditions/suspend-condition temporal-constraint temporal-constraint cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition subplans/wait-for
attributes	Name   Type   Use   Default   Fixed   Annotation importance   xs:NMTOKEN

element typical-duration

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  plan-group/plan/defaults for-each-plan/do-for-each plan-activation/plan-schema

element unit-class

diagram
children	comment url bibref not-yet-defined
used by	elements  unit-def/compound-def/denominator unit-def/compound-def/numerator unit-class-list
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required         exponent   xs:NMTOKEN      1

element unit-class-list

diagram
children	comment url bibref not-yet-defined unit-class

element unit-def

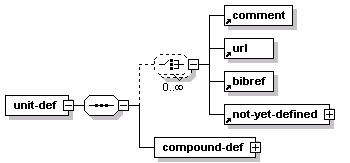

diagram
children	comment url bibref not-yet-defined compound-def
used by	elements  plan-library/domain-defs/domain plan-library/library-defs
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required         rounding   xs:NMTOKEN      nearest      precision   xs:NMTOKEN            precision-unit   xs:string            cascade   xs:NMTOKEN            default-unit   xs:string            default-scale   xs:string

element unit-def/compound-def

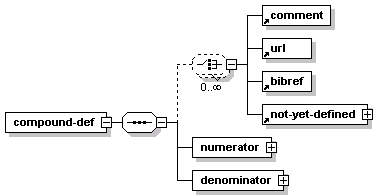

diagram
children	comment url bibref not-yet-defined numerator denominator

element unit-def/compound-def/numerator

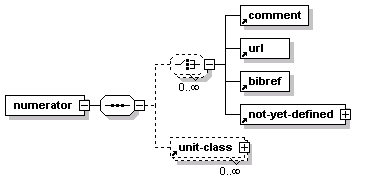

diagram
children	comment url bibref not-yet-defined unit-class

element unit-def/compound-def/denominator

diagram
children	comment url bibref not-yet-defined unit-class

element upper-bound

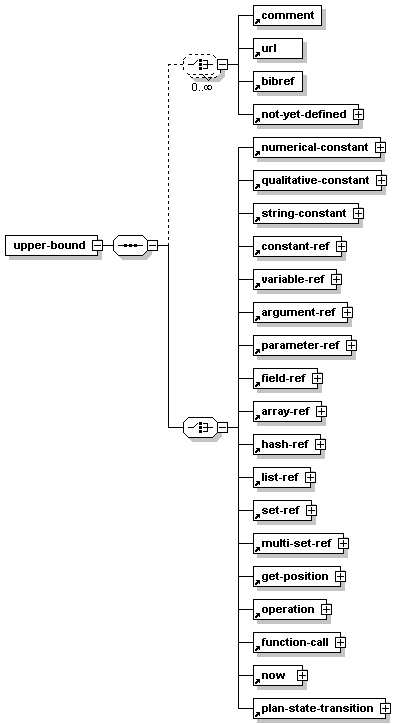

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition
used by	elements  parameter-group/parameter-def/hard-bounds parameter-group/parameter-def/soft-bounds value-range
attributes	Name   Type   Use   Default   Fixed   Annotation include-limit   xs:NMTOKEN      yes

element url

diagram
used by	elements  plan-group/plan/conditions/abort-condition subplans/abort-if abort-if-group abort-if-item abort-if-not administrative-data subplans/wait-for/all always any argument plan-group/plan/effects/argument-dependency argument-ref argument-value plan-group/plan/arguments array-def array-ref ask average-def qualitative-scale-def/secondary-qualitative-entry/based-on-entry boolean-def bound calculation-def subplans/wait-for/cardinality center-def change-def administrative-data/changes comparison plan-group/plan/conditions/complete-condition unit-def/compound-def plan-group/plan/conditions constant-def constant-operation constant-ref constraint-combination constraint-not context context-combination plan-library/domain-defs/domain/context-def context-not context-ref plan-group/plan/preferences/costs count-constraint qualitative-parameter-def/limits/cross-over-time cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition cyclical-plan cyclical-plan/cyclical-plan-body cyclical-time-annotation cyclical-time-annotation-assignment cyclical-time-annotation-ref cyclical-time-point-assignment cyclical-time-annotation/cyclical-time-point-ref logical-dependency-def/default plan-group/plan/defaults unit-def/compound-def/denominator plan-group/plan/derived-from array-def/dimension-def do-after do-before for-each-plan/do-for-each iterative-plan/do-repeatedly plan-library/domain-defs/domain plan-library/domain-defs duration earliest plan-group/plan/effects element if-then-else/else-branch end-point-def cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/end-time reference-point/epsilon explanation field-ref plan-group/plan/conditions/filter-precondition time-range/finishing-shift numerical-scale-def/first-unit-entry-equals for-each-plan set-of-cyclical-time-points/frequency function-call function-def get-position go-to-next go-to-previous parameter-group/parameter-def/hard-bounds has-occurred hash-def hash-ref if-then-else array-ref/index scalar-def/initial-value insert-after-iterator insert-after-position insert-before-iterator insert-before-position plan-group/plan/intentions/intention plan-group/plan/intentions interval invoking-plan is-at-end is-at-start is-automatic parameter-proposition/is-known-parameter is-known-variable is-manual is-member-of parameter-proposition/is-unknown-parameter is-unknown-variable is-within-range iterative-plan iterator-def latest comparison/left-hand-side array-def/dimension-def/length plan-library/library-defs time-to-alarm-def/limit qualitative-parameter-def/limits/limit-entry qualitative-parameter-def/limits list list-def list-ref logical-combination-def logical-dependency-def lower-bound raw-data-def/maximal-decrease raw-data-def/maximal-increase maximum raw-data-def/maximum-value minimum spread-def/minimum-of-valid-points raw-data-def/minimum-value multi-set multi-set-def multi-set-ref qualitative-parameter-def/limits/negative-infinite none not-yet-defined now unit-def/compound-def/numerator numerical-constant numerical-scale-def set-of-cyclical-time-points/offset on-abort on-suspend subplans/wait-for/one one-of operation parameter-group/parameter-def parameter-group parameter-proposition parameter-ref patient-record-def plan-group/plan plan-activation plan-group/plan/plan-body plan-group/plan/effects/plan-effect plan-group plan-library plan-pointer plan-activation/plan-schema plan-state-constraint plan-state-transition plan-library/plans position qualitative-parameter-def/limits/positive-infinite plan-group/plan/preferences patient-record-def/primary-key plan-library/domain-defs/domain/primitive-plan-def put-first put-last qualitative-constant qualitative-entry qualitative-parameter-def qualitative-scale-def raw-data-def plan-group/plan/conditions/reactivate-condition record-def refer-to reference-point references plan-group/plan/refers-to remove-at-iterator remove-at-position remove-element repeat-specification reset-iterator plan-group/plan/preferences/resource-constraint repeat-specification/retry-delay plan-group/plan/returns/return-value return-value-assignment plan-group/plan/returns comparison/right-hand-side sampling-frequency scalar-def qualitative-scale-def/secondary-qualitative-entry self set set-context set-def set-iterator cyclical-plan/set-of-cyclical-complete-conditions set-of-cyclical-time-points set-ref plan-group/plan/conditions/setup-precondition simple-condition simple-condition-combination simple-condition-not single-steps slope-def parameter-group/parameter-def/soft-bounds spread-def standard-deviation-def cyclical-plan/start-time time-range/starting-shift state-specific-pattern state-specific-pattern-combination state-specific-pattern-not static-plan-pointer spread-def/step-width string-constant subplans plan-group/plan/conditions/suspend-condition temporal-constraint termination-condition the-constant-expression the-expression the-single-step if-then-else/then-branch time-annotation time-annotation-assignment time-annotation-ref ask/time-out time-point time-range time-to-alarm-def spread-def/time-window-size to-be-defined raw-data-def/trust-period typical-duration unit-class unit-class-list unit-def numerical-scale-def/unit-entry cyclical-plan/set-of-cyclical-complete-conditions/cyclical-complete-condition/until-condition upper-bound plan-library/domain-defs/use-domain user-performed parameter-proposition/value-description value-range one-of/value-ref variable-assignment variable-ref subplans/wait-for wait-for-group wait-for-not plan-group/plan/conditions/setup-precondition/waiting-period
attributes	Name   Type   Use   Default   Fixed   Annotation text   xs:string   required

element user-performed

diagram
children	comment url bibref not-yet-defined
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before plan-group/plan/plan-body subplans

element value-range

diagram
children	comment url bibref not-yet-defined lower-bound upper-bound
used by	elements  is-within-range parameter-proposition

element variable-assignment

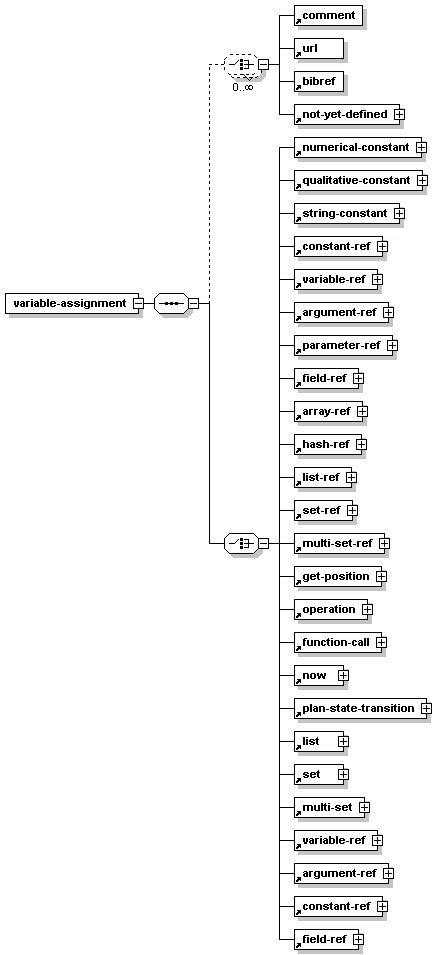

diagram
children	comment url bibref not-yet-defined numerical-constant qualitative-constant string-constant constant-ref variable-ref argument-ref parameter-ref field-ref array-ref hash-ref list-ref set-ref multi-set-ref get-position operation function-call now plan-state-transition list set multi-set
used by	elements  cyclical-plan/cyclical-plan-body do-after do-before iterative-plan/do-repeatedly if-then-else/else-branch on-abort on-suspend plan-group/plan/plan-body single-steps subplans the-single-step if-then-else/then-branch
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            variable   xs:NMTOKEN   required

element variable-def

diagram
children	record-def array-def hash-def list-def set-def multi-set-def scalar-def
used by	elements  plan-library/domain-defs/domain plan-library/library-defs plan-group/plan/value-defs
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element variable-ref

diagram
children	comment url bibref not-yet-defined
used by	elements  argument-value bound subplans/wait-for/cardinality plan-group/plan/preferences/costs plan-group/plan/preferences/costs count-constraint earliest element reference-point/epsilon explanation set-of-cyclical-time-points/frequency array-ref/index scalar-def/initial-value is-member-of is-within-range iterator-def latest comparison/left-hand-side array-def/dimension-def/length list logical-dependency-def lower-bound maximum minimum multi-set set-of-cyclical-time-points/offset operation position reference-point plan-group/plan/returns/return-value plan-group/plan/returns/return-value comparison/right-hand-side set the-expression ask/time-out time-point typical-duration upper-bound parameter-proposition/value-description variable-assignment variable-assignment
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:NMTOKEN   required

element wait-for-group

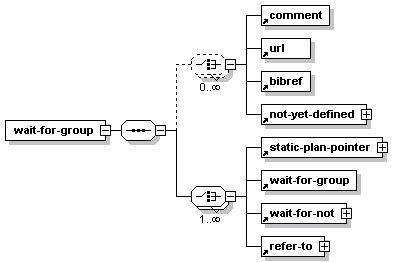

diagram
children	comment url bibref not-yet-defined static-plan-pointer wait-for-group wait-for-not refer-to
used by	elements  subplans/wait-for wait-for-group wait-for-not
attributes	Name   Type   Use   Default   Fixed   Annotation label   xs:NMTOKEN            type   xs:NMTOKEN   required

element wait-for-not

diagram
children	comment url bibref not-yet-defined static-plan-pointer wait-for-group wait-for-not refer-to
used by	elements  subplans/wait-for wait-for-group wait-for-not

XML Schema documentation generated with XML Spy Schema Editor www.xmlspy.com
